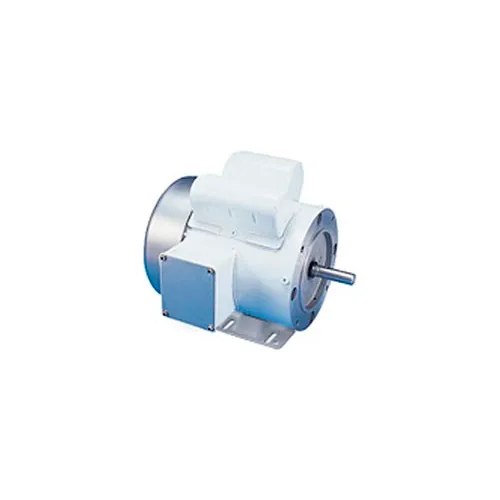

Leeson Motors Motor Washdown Motor-1.5HP, 115/208-230V, 3450RPM, TEFC, RIGID C, 1.15 SF, 72 Eff.

Pressure Washer Motor: 1.5HP, 3450RPM, 56 Frame, Totally-Enclosed, Fan-Cooled (TEFC), 115/208-230V, 1PH, Continuous duty, Manual thermal protection, 1.15 Service Factor, Rigid C Mount. Motors specially suited for hot or cold pressure washer applications and other single phase installations requiring minimum starting and running amperages. Capacitor start, capacitor run construction for reduced amperage. Double shield ball bearings prelubricated with Exxon POLYREX® EM lubricant, having operating temperature range of -20°F to +350°F and special formulation to provide extra long ...

Woodworking Motor: 4HP, 3450RPM, 145 Frame, Totally-Enclosed, Fan-Cooled (TEFC), 230V, 1PH, SAW duty, No thermal protection, 1.0 Service Factor, Round Mount. Motor pivots on rod for belt tensioning. Totally enclosed fan cooled motor produces extra high breakdown torques for maximum cutting power. Has 13⁄4 long shaft, 3⁄4 diameter with keyway. Added 54 cord to all motors 11/2-4 HP.

Woodworking Motor: 3HP, 3450RPM, 145 Frame, Totally-Enclosed, Fan-Cooled (TEFC), 230V, 1PH, Continuous duty, Manual thermal protection, 1.0 Service Factor, Round Mount. Motor is designed for woodworking equipment such as table saws, planers, etc. Totally enclosed design prevents motor problems caused by wood dust and shavings.

General Specifications: NEMA 56 C-Face mounting face Mechanically locked ball bearing on shaft-end, limits axial shaft movement Quiet operation through "Super Hush" flow-through ventilation system 416 stainless steel shafts Quick Connect terminals to reduce installation time Auto re-set protectors Stator windings impregnated with extra heavy varnish system High overload capacities provided by high service factor ratings Double-sealed ball bearings UL and C.S.A recognized

General Purpose, Capacitor Start-Inductor Run Motor: 1.5HP, 3450 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 56 Frame, Rigid Mount, 115/208-230V, 1PH, 60HZ, Name Plate Amps 17/8.5, Continuous duty, 1.0 Service Factor, Manual thermal protection, Efficiency: 72, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length 1-7/8, Shaft Diameter 5/8. Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by ...
