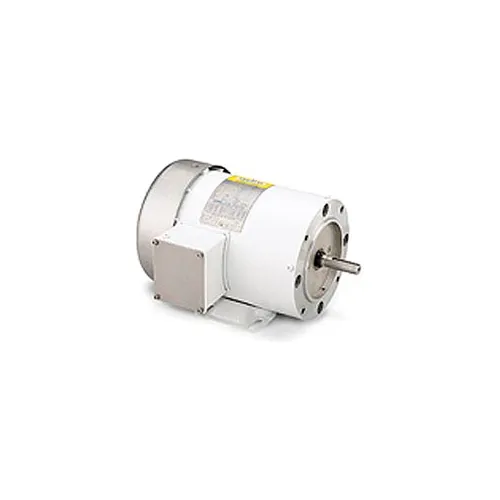

Leeson Motors Motor Washdown Motor-1 1/2HP, 208-230/460V, 3450RPM, TENV, RIGID C, 1.15 SF, 84 Eff.

Pressure Washer Motor: 1.5HP, 3450RPM, 56 Frame, Totally-Enclosed, Fan-Cooled (TEFC), 115/208-230V, 1PH, Continuous duty, Manual thermal protection, 1.15 Service Factor, Rigid C Mount. Motors specially suited for hot or cold pressure washer applications and other single phase installations requiring minimum starting and running amperages. Capacitor start, capacitor run construction for reduced amperage. Double shield ball bearings prelubricated with Exxon POLYREX® EM lubricant, having operating temperature range of -20°F to +350°F and special formulation to provide extra long ...

Compressor Duty Motor: 5HP, 3450RPM, 56 Frame, Drip-Proof (DP), 230V, 1PH, Continuous duty, Manual thermal protection, 1.0 Service Factor, Rigid Mount. Motors are designed for air compressor, pump, and fan and blower duty applications which require high breakdown torque and rugged mechanical construction. Mechanical Features: Prelubricated double shielded, amply sized, ball bearing construction to accommodate varying belt loads and tension. Electrical Features: High efficiency energy saving designs. Class F copper windings. Class F varnish. High starting and breakdown torque. Motors are ...

Pressure Washer Motor: 3HP, 3450RPM, 56H Frame, Totally-Enclosed, Fan-Cooled (TEFC), 208-230V, 1PH, Continuous duty, Manual thermal protection, 1.0 Service Factor, Rigid C Mount. Motors specially suited for hot or cold pressure washer applications and other single phase installations requiring minimum starting and running amperages. Capacitor start, capacitor run construction for reduced amperage. Double shield ball bearings prelubricated with Exxon POLYREX® EM lubricant, having operating temperature range of -20°F to +350°F and special formulation to provide extra long life and ...

Compressor Duty Motor: 5HP, 3450RPM, 145 Frame, Drip-Proof (DP), 230V, 1PH, Continuous duty, Manual thermal protection, 1.0 Service Factor, Rigid Mount. Motors are designed for air compressor, pump, and fan and blower duty applications which require high breakdown torque and rugged mechanical construction. Mechanical Features: Prelubricated double shielded, amply sized, ball bearing construction to accommodate varying belt loads and tension. Electrical Features: High efficiency energy saving designs. Class F copper windings. Class F varnish. High starting and breakdown torque. Motors are ...

LEESON Electric and Lincoln Motors line of single phase General Purpose AC motors include both ODP and TEFC enclosures. Features include: Durable rolled steel frame Class B insulation High-quality ball bearings Easy-to-read nameplate Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation. UL Recognized Component Listing and CSA approval. Warranty - 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
