Features
- Moisture sealant on bolt heads, between frame and endplates
- Food processing and other applications where motor is regularly exposed to high pressure wash down.

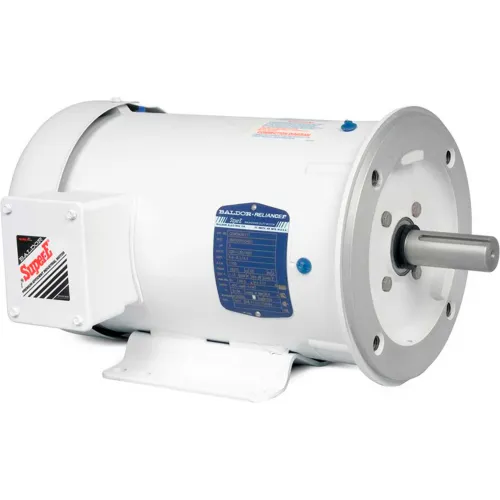

Baldor-Reliance Washdown Motor CEWDM3704T, 3 PH, 3 HP, 1160 RPM, 208-230/460 V, TEFC, 213TC FR
Write a Review
|
Questions & Answers (0)
Product Description
Baldor-Reliance's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electostatically applied epoxy finish, paint free with major components in 300 series stainless steel, and all stainless steel. Applications include food processing, packaging, pharmaceuticals, or applications where motors are regularly exposed to high pressure wash down.
Features
Features
PRICE
$2,839.00
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Dimension C | 19.78 in |
Product Details
| Power Factor | 68 |
| Bearing Opp Drive End | 6206 |
| KVA Code | L |
| Motor RPM 60 Hertz | 1160 rpm |
| Mounting Location | C-Face Rigid |
| Phase | 3 |
| Manufacturers Part Number | CEWDM3704T |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Bearing Drive End | 6307 |
| Brand | Baldor-Reliance |
| RPM | 1160 rpm |
| Type | Washdown Motor |
| Insulation Class | F |
| Horsepower | 3 HP |
| Frame | 213TC |
| Hertz | 60 Hz |
| Design Code | B |
| Enclosure Type | Totally Enclosed |
| Voltage | 208-230/460 V |
| Full Load Efficiency | 89.5 |
| Full Load Amps | 9.6-9.2/4.6 FLA |
| Duty | Continuous |
| Ambient Temperature | 40 °C |
| RPM Range | 1101-1200 rpm |
Compliance & Certifications
| Specification Number | 37G815S519G1 |
| DOE Code | 010A |
