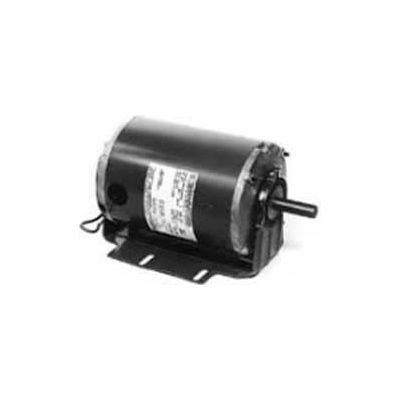

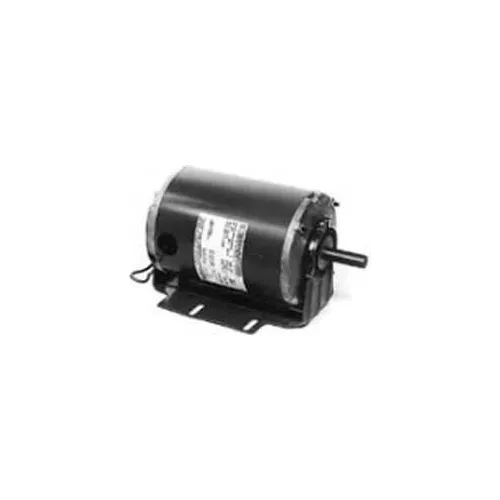

Marathon Motors X029, 1/2HP, 115/230V, 1075RPM, 1PH, TEAO, 48YZ FR
These motors are designed for many of the varied applications found on the farm. Designs include motors suitable for aeration fans, auger drives, grain stirring, metering pumps, instant reversing, irrigation tower drives, and crop driers.
These motors are designed for many of the varied applications found on the farm. Designs include motors suitable for aeration fans, auger drives, grain stirring, metering pumps, instant reversing, irrigation tower drives, and crop driers.
Product Details
- Kilowatts 0.37 kW
- Mounting Location Resilient Base/Stud
- Bearing Drive End 6203
- Assembly Required F1 Only
- RPM 1075 rpm
- Rotation CCW °
- Ambient Temperature 40 °C
- KVA Code D
- IP Code 43
- Insulation Class B
- RPM Range 1001-1100 rpm
- Voltage 115/230 V
- Frame 48YZ
- Service Factor 1
- Horsepower 1/2 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Duty Continuous AOM
- Enclosure TEAO
- Phase 1
- Orientation Horizontal
- Starting Type PSC 1 Speed
- Brand Marathon Motors
- Full Load Amps 6.4/3.2 FLA
- Motor RPM 60 Hertz 1075 rpm
- Thermal Protection Automatic Protector (under locked rotor only)
- Manufacturers Part Number X029
- Catalog Number X029
Compliance & Certifications
- NEMA Design No Design Code
- CSA Certified Y
- UL Recognized Construction and Protector
Weights & Dimensions
- Drive End Bearing Size 6203
- Opposite End Bearing Size Ball
- Weight 22
Customer Review
Product Q & A
There are no questions for this product.
Marathon Motors X029, 1/2HP, 115/230V, 1075RPM, 1PH, TEAO, 48YZ FR
