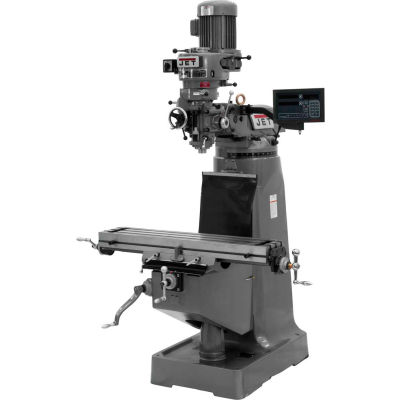

Jet 691187 JTM-1 9X42 Milling Machine W/2-Axis Newall DP700 DRO, 2 HP
Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty
Features:
Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty
Features:
- Meehanite casting
- Precision bored and honed Milling head
- Large diameter quill is chromed
- High precision Class 7 spindle bearings
- Spindle head is internally cooled
- Satin chrome finished dials
- Heavy duty spindle motor drive
- One piece quill pinion and shaft
- Three stage power downfeed with automatic stop
- Heavy duty spindle brake
- Precision hardened and ground ways
- Adjustable gibs throughout
- Internal coolant tank built into base for use with coolant system (coolant pump not included)
- Tolerance test sheet included
- One shot lubrication system
- Way covers
- Draw bar
- Tool box with tools
Weights & Dimensions
- Table Cross Travel 12-1/2 in
- Spindle Travel 5 in
- Collet Capacity 1/8 - 7/8 in
- Table Longitudinal Travel 23-7/8 in
- Quill Diameter 3-3/8 in
- Max Distance Spindle to Table 17-1/2 in
- Table Size (L x W) 9 x 42 in
- T-Slots Number And Size 3 & 5/8 in
- T-Slots Centers 2-1/2 in
- Min Distance Spindle to Column 4-1/2 in
- Travel Of Ram 13-3/8 in
- Max Distance Spindle to Column 19 in
- Travel Of Knee 14-1/2 in
- Distance Spindle To Column 19 in
Product Details
- Head Movement (Degrees) 90 R & L, 45 F & B °
- Jet Promo 12/6/19 to 12/26/19
- Power Draw Bar Manual
- Motor Voltage 230 v
- Spindle Taper R-8
- Range of Spindle Speeds 80 - 5,440 rpm
- Motor Horsepower 2 HP
- Style Step Pulley R8
- Work Table Weight Capacity 550 lbs
- Number of Spindle Speeds 16
- Powerfeed None
- DRO Newall DP700
- Phase Three
- Quill Down Feed Rates (IPR) .0015 - .003 - .006
- Brand JET
- Warranty 2-Year Warranty yr
- Manufacturers Part Number 691187
