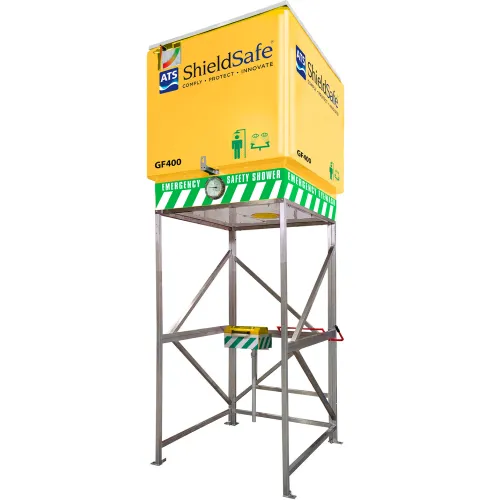

ATS ShieldSafe® GF400™ Palletized Safety Eyewash Station, 400 Gallon Capacity

Application: Combination eye/face wash and shower safety station. Eye/face wash features a stainless steel bowl with two large FS-Plus™ spray-type outlet heads that deliver a flood of water for rinsing eyes and face. Shower Head: 10" diameter orange ABS plastic with 20 GPM flow control. Shower Valve: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod. Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a "flip top" dust cover, ...

Combination shower eye/face wash unit is a free standing floor mounted unit. Shower valve opens quickly by a pull rod with a triangular handle. Shower provides a superior wash down with a more even spray pattern. Eyewash operated by a large, highly visible push handle. Safe, steady water flow under varying water supply conditions from 30-90 PSI insured by integral flow control in the spray head assembly. Features 120 volt electric heat trace cable with pipe insulation regulated to -50° F (-45.5° C). Rated for use in Class 1 Division 2, groups B, C, and D locations. NEMA 4X ...

Haws Model 8315CTFP heat traced combination shower and eye/face wash features a unique 3-way valve which reduces the amount of pressurized pipe and non-pressurized standing water, greatly lowering the amount of "dead leg" water in the system resulting in less opportunity for Legionella growth. Also reduced is the packaging foot print allowing for economical and fast UPS shipment. The unit includes the medically acclaimed AXION MSR eye/face wash head assembly. This revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent ...

Electric heat-traced stations prevent freezing even in extreme conditions. Thermostat regulated units are heated by self-limiting heat-tracing cable wrapped around internal pipe. Units are intended for cold weather use down to -20°F. Self-regulated with external termination guards. Thermostat activates when internal piping temperature falls below 75°F. FM, UL, and CSA approved for Class I, Division 2, Groups B, C, and D. Unit is fully wired at factory. Junction box and components rated for Class I, Division 2, Groups B, C, and D. Requires 120 VAC single phase power supply. ...

Combination shower and eye/face wash unit is intended for use in general areas where temperatures fall below freezing. Heat trace cable powered from 120 VAC protects until from freezing to -50° F (-46° C). Unit is encased in highly-visible yellow ABS removable plastic shell. Shower valve operates quickly by a pull rod with a triangular handle and provides superior wash down. Eye/face wash is operated by a large push handle. Indicator lights standard on S19-304GATL and S19-304GABL. 1-1/4" NPT water supply (top).Combination unit is a free standing floor mounted. Features 120 volt ...
