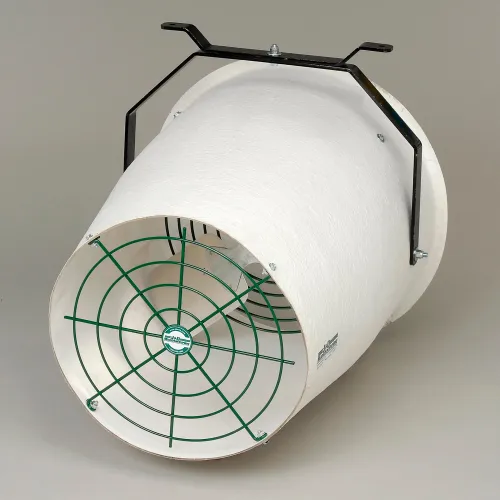

J&D 20" Fiberglass Funnel Fan Variable Speed VU20F2 1/2 HP 2870 CFM
Write a Review
|
Questions & Answers (0)
Product Description
20" Diameter Fan
Provides low cost air circulation that's ideal for greenhouses, hog barns, poultry buildings and factories. Energy efficient variable speed direct drive 1/2HP motor is enclosed and features sealed ball bearings and automatic thermal overload protection for long life. Durable, rust resistant fiberglass housing provides increased stability over poly funnel fans. Features heavy-duty steel center hub and 3 balanced aluminum fan blades for energy conservation. Tapered outlet condenses exhaust air into a tight stream for higher velocity. Mounting bracket allows tilt angle adjustments vertically and horizontally for airflow adjustments. Motor is CSA Certified. 115V/230V. 4.8/2.4 amps. 2 Year Limited Warranty. Horsepower rating based upon maximum speed/load.
Provides low cost air circulation that's ideal for greenhouses, hog barns, poultry buildings and factories. Energy efficient variable speed direct drive 1/2HP motor is enclosed and features sealed ball bearings and automatic thermal overload protection for long life. Durable, rust resistant fiberglass housing provides increased stability over poly funnel fans. Features heavy-duty steel center hub and 3 balanced aluminum fan blades for energy conservation. Tapered outlet condenses exhaust air into a tight stream for higher velocity. Mounting bracket allows tilt angle adjustments vertically and horizontally for airflow adjustments. Motor is CSA Certified. 115V/230V. 4.8/2.4 amps. 2 Year Limited Warranty. Horsepower rating based upon maximum speed/load.
PRICE
$539.00
1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 23 in |
| Width | 23 in |
| Height | 27 in |
| Weight | 47 lbs |
| Fan Diameter | 20 in |
Product Details
| Assembly Required | No |
| Max Ambient Temperature | 104 °F |
| Number of Speeds | Variable |
| Fan Type | Industrial, Agricultural |
| Number of Blades | 3 |
| For Use With | Greenhouses, Factories, Warehouses, Stadiums, Dairy Barns |
| Blade Color Family | Silver |
| Motor Type | Totally Enclosed |
| Mounting Location | Ceiling |
| Material | Aluminum |
| Phase | 1 |
| Blade Type | Aluminum |
| Manufacturers Part Number | VU20F2 |
| Indoor/Outdoor | Indoor |
| Brand | J&D Manufacturing |
| CFM | 2870 CFM |
| Horsepower | 1/2 HP |
| Color | White |
| Amperage | 4.8/2.4 A |
| Drive Type | Direct Drive |
| Hertz | 60 Hz |
| Voltage | 115 / 230 V |
| Includes | Fan with Yoke Mount |
| CFM High | 2870 CFM |
| Description | Fiberglass Funnel Fan |
| Oscillating/Non Oscillating | Non Oscillating |
| Power Cord Type | Not Included |
| Decibels | 65 |
| Mounting Style | Yoke Mount |
Warranty
| Warranty | 2 yr |
Compliance & Certifications
| Certifications | CSA Certified |
