EXHAUST FAN
Guarded exhaust fans feature 120V, single-phase totally permanently lubricated motors with provisions for direct wiring. These shutter mounted fans install on inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial environments. Aluminum blades are enclosed in a sturdy steel spiral wire guard. Note: Rough-in hole size is 1/2 inch (+/- 5/16) larger than fan blade size. Meets OSHA and UL507 standards. UL, cUL listed.
1 year limited warranty. Horsepower rating based upon maximum speed/load. Horsepower rating based upon maximum speed/load.
Guarded exhaust fans feature 120V, single-phase totally permanently lubricated motors with provisions for direct wiring. These shutter mounted fans install on inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial environments. Aluminum blades are enclosed in a sturdy steel spiral wire guard. Note: Rough-in hole size is 1/2 inch (+/- 5/16) larger than fan blade size. Meets OSHA and UL507 standards. UL, cUL listed.
1 year limited warranty. Horsepower rating based upon maximum speed/load. Horsepower rating based upon maximum speed/load.
- AMPS 2.20
- APPROVALS OR CERTIFICATIONS UL, cUL listed, OSHA & UL507 Compliant
- ASSEMBLY Unassembled
- BRAND CD
- Base Model Number 294497
- CFM HIGH 7,000
- COLOR Gray
- CONSTRUCTION Steel / Aluminum
- DECIBELS (DBA) 70
- DEPTH INCHES 6-1/2
- DRIVE TYPE Direct
- FAN DIAMETER INCHES 24
- HEIGHT INCHES 27-1/2
- HORSEPOWER 1/4
- LIMITED WARRANTY YEARS 1
- MAX. TEMPERATURE 104° F
- MODEL 294497
- MOUNT TYPE Inside Wall
- POWER CORD LENGTH FEET Not Included
- POWER CORD TYPE Hard Wire
- ROUGH OPENING INCHES 24-1/2
- RPM HIGH 1,100
- SPEEDS 1
- VOLTAGE 120
- WATTS 245
- WEIGHT LBS 47
- WIDTH INCHES 27-1/2
⚌
Photo/Video Gallery
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: Jorge
Date: April 14, 2021
-
Reviewer: HUGH
Date: July 28, 2020
Your review:
Just what we needed to move air through the very warm mechanical room. Spring loaded shutter keeps closed when the fan is off. Keeps the weather from coming in the louvres. -
Reviewer: CLAY
Date: July 20, 2020
Your review:
Easy installation, moves lots of air -
Reviewer: ERIC
Date: July 06, 2020
Your review:
good product, prompt service -
Reviewer: TRENT
Date: January 20, 2020
Your review:
Works great really moves air. -
Reviewer: Anonymous
Date: August 13, 2019
Your review:
Excellent quality, pretty quite, easy installation. Customer service was very responsive to a minor problem and was quickly solved to my satisfaction. -
Reviewer: Anonymous
Date: November 06, 2017
Your review:
Fan is great, fast shipping -
Reviewer: Anonymous
Date: August 03, 2017
Your review:
I installed this fan in my shop on my farm. My shop is 24x40 with 14 height ceiling. This fan does a great job of moving hot air out and is very quiet. Its well built and I was able to install it easily. -
Reviewer: Anonymous
Date: July 13, 2016
Your review:
The fan came in great shape and was properly packed. It was easy to assemble and install. -
Reviewer: Anonymous
Date: December 30, 2014
Your review:
I AM MORE THAN PLEASED WITH THE EXHAUST FAN.
Product Q & A
There are 2 questions and 2 answers for this product.
-
Can this fan be used to exhaust paint fumes?
Question Asked By: Eilyn, June 10, 2021
Answer This Question
Question Answered By:
-
Product Expert, July 22, 2019
Hello Eilyn, yes this can be used to exhaust fumes. However, if you are in a confined space or need an extraction device, we can recommend the following models as well: 246429, 246431, or 292646. Thank you for your question.
-
-
Can the blades and motor direction be reversed to use this as a supply fan as well?
Question Asked By: Robert, April 07, 2015
Answer This Question
Question Answered By:
-
Product Expert, April 07, 2015
The blades and motor cannot be reversed. This is an exhaust fan only.
-
Accessories
Warranty
This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.

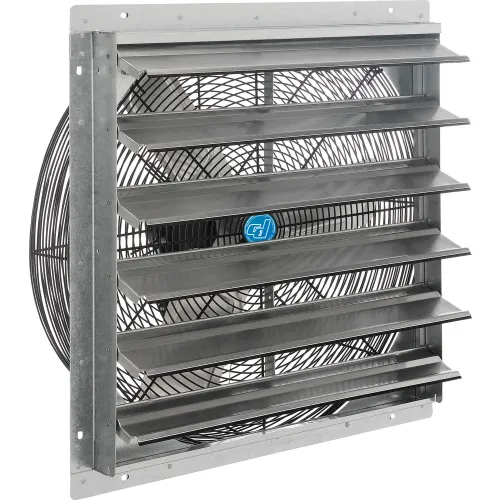

Continental Dynamics® 24" Exhaust Fan with Shutter - Direct Drive - 1/4 HP - Single Speed
$285.95
- Product Information
- Photo/Video Gallery
- Customer Review
- Product Q&A
- Accessories
- Warranty
Shopping Lists
Continental Dynamics® 24" Exhaust Fan with Shutter - Direct Drive - 1/4 HP - Single Speed
