Model # :WB795730

MPN #: CACU24P

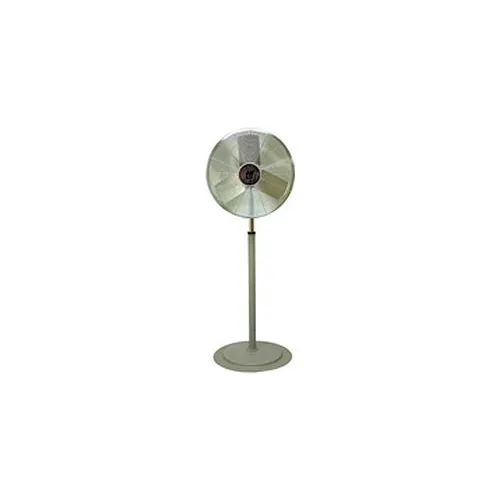

TPI 24" Pedestal Fan, 3,400 CFM, 1/4 HP, 1 Phase

Product Description
The TPI industrial fan allows tool free fan height adjustments from 43-60"H. The pedestal fan includes a 27" diameter base for stability. These quality portable fans include an enclosed permanently lubricated, PSC-type ball bearing single-phase motor for long life and optimum performance. 3 quiet aluminum blades are enclosed in double locking chrome plated steel wire guards for safety. Pivot-action fan head allows vertical tilt angle adjustments. 2-speed pull chain operation. 12'L SJT type, 3-conductor power cord. Easy assembly with pre-assembled fan heads and mounts. It meets OSHA standards, UL, cUL Listed. This product has limited warranty of 1 year. Horsepower rating based upon maximum speed/load.

PRICE
$525.00

1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Height52 - 82 in
Weight63 lbs
Cord Length9 ft
Base Diameter27 in
Fan Diameter24 in

Product Details

Assembly RequiredYes
Number of Speeds3
Fan TypeCommercial
Number of Blades3
For Use WithSpot & People Cooling
Motor TypeOpen Air Over
Wattage276 W
MaterialSteel / Aluminum
Phase1
Blade TypeAluminum
Manufacturers Part NumberCACU24P
Indoor/OutdoorIndoor
BrandTPI
RPM1125 rpm
TypePedestal Fan
CFM2800/3400 CFM
Horsepower1/4 HP
ColorGray
Amperage2.3 A
Drive TypeDirect Drive
Hertz60 Hz
RPM High1,125 rpm
Voltage120 V
CFM High3400 CFM
Oscillating/Non OscillatingNon Oscillating
Watts276 W
Power Cord TypeSJT 3 Conductor

Warranty

Warranty1 yr

Compliance & Certifications

CertificationsUL, cUL Listed, OSHA compliant
