- Die cast metal construction
- (2)6" Wire leads
- Break glass type
- Single action
- Contact rating: 3.0 Amps, 30V AC, 60V DC
- The 270 Series fire alarm pull station is for fire alarm installations in schools, hospitals, factories, and industrial locations.
- Available in both open and closed circuit designs and has a tamper proof reset function.
- The station's die cast body is painted red, with painted silver stripes.
- For replacement glass rods, order Catalog No. 270-GLR (pkg. of 20).
- The 270 Series mounts on a 4" (72mm) square box with single gang plaster cover.
- Surface mounted using the P-027193 cast back box or the P-039250 steel back box.
- For weatherproof mounting, order the Catalog No. STI-3150.

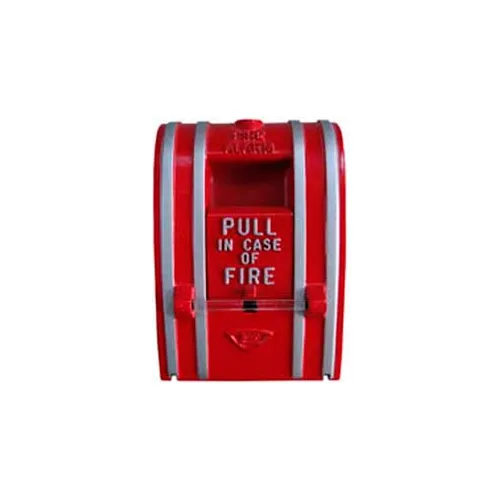

Edwards Signaling, K-270A-SPO, 270 Series Fire Alarm Station, Single Pole With Wire Leads
|
Questions & Answers (0)
Product Description
Features:
PRICE
$37.95
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Product Details
| Mounting Location | Surface Or Flush |
| Voltage | 30V AC, 60V DC V |
| Marking | Fire Alarm |
| Description | Fire Alarm Station |
| Amperage | 3.0 A |
| Operating Temperature | 32°F- 70°F |
| Operating Humidity | 95% |
| Brand | Edwards Signaling |
Compliance & Certifications
| Certifications | UL, CSFM |
