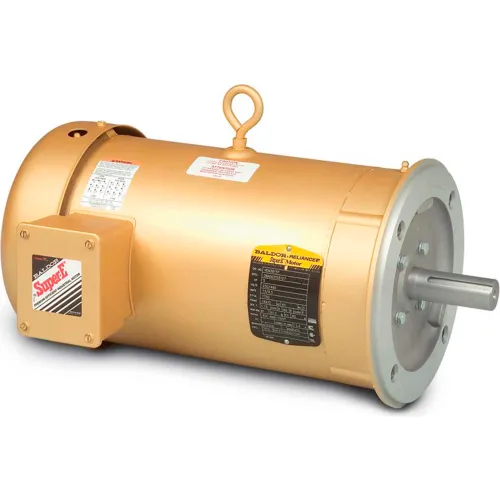

Baldor-Reliance 3-Phase Motor, VEM3558T-5, 2 HP, 1755 RPM, 145TC Frame, C-Face Mount, TEFC,575 Volts

Baldor-Reliance 3-Phase Motor, VEM3558T-5, 2 HP, 1755 RPM, 145TC Frame, C-Face Mount, TEFC, 575 Volts

Some general purpose applications require a motor that runs on 200 volt power. These 200 volt motors are stocked from 1 Hp to 50 Hp in TEFC, and 1 Hp to 100 Hp in ODP. Also available is an extensive line of 575 volt motors. The 575 volt motors are available in general purpose TEFC and ODP, Washdown, Severe Duty, IEEE-841, Explosion Proof, and Close-Coupled pump designs, in a variety of mounting configurations.

Features

• Heavy gauge steel and cast iron frames
• Ball bearings
• ISR® (Inverter Spike Resistant®) copper windings
• Low-loss electrical grade lamination steel
• Three year Warranty

Application(s)

• Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.
