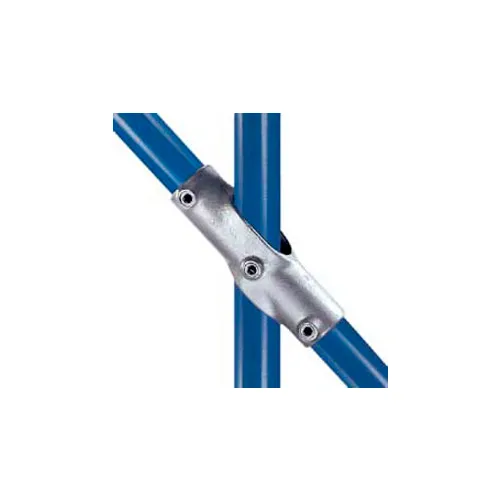

Kee Safety - 30-7 - 30 Degree - 45 Degree Adjustable Cross, 1-1/4" Dia.

Kee Klamp® Fittings Parapet Flange A component designed to retrofit roof parapets that are an unsafe height. Rail anchor is angled 25 degrees from the vertical so that the building's visage is unaffected by the implemented railing. Two holes are located in the top mounting bracket for mounting directly into the parapet. The two set screws in the vertical socket give greater side-load stability to the angled upright.

KEE KLAMP® FITTINGS CROSSOVER Designed to give a 90 degree offset crossover joint. Frequently used on safety railing, where, to reduce cost by minimizing the pipe cuts, a continuous horizontal rail is used. It may be also used to give intermediate levels on racks. PA Warning: Pipe cannot be joined within this Kee Lite fitting.

Kee Klamp® Fittings Crossover Coupling This fitting is designed to give a 90 degree offset crossover. As there are two socket set screws in the sleeve, this Kee Klamp fitting can be used where a join is required in the horizontal pipe. For economy, it is possible to use a Type 45 in place of the 145, using the 145 only where a join in the pipe occurs. When calculating the cutting lengths for pipe, dimension 'G' should be added to give the pipe length for the upright.

Kee Klamp® Fittings Male Corner Swivel Socket Member One part of a Type C52 combination fitting. This fitting can also be used for attaching flat panels to tubular structures. 3/8" diameter bolt hole.

Kee Klamp® Fittings Female Single Swivel Socket Member One part of a combination fitting. The Type F50, in size 4, has only one ear while Type F50, in sizes 5 through 9, has two ears. The distance between the ears on sizes 5 through 9 is 12.70mm or 1/2 inch. 3/8" diameter bolt hole.
