Airmaster Fan

Model # :WBB502403

MPN #: 20860

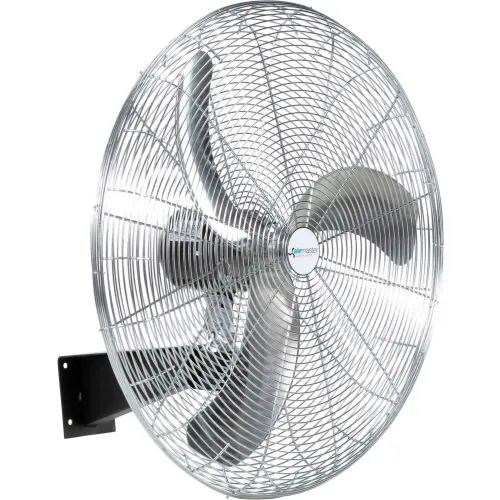

Airmaster Fan 30HW36 30 Inch Wall Fan 1 HP 12400 CFM , Non-Oscillating

Product Description
30" Ultra High Velocity Air Flow Wall Mount Fan - 1240 CFM Kit consists of motor, guard assembly and wall mount.

  • Heavy Gauge Galvanized Steel Propeller for Severe Conditions
  • 208/230/460V, 1 HP, 3 Phase, Totally Enclosed, Ball Bearing Motor
  • Single Speed
  • 1 Year Warranty
PRICE
$1,425.00

1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Width33-3/8 in
Depth28-1/4 in
Height33-3/8 in
Weight83 lbs
Fan Diameter30 in

Product Details

Assembly RequiredYes
Max Ambient Temperature104 °F
Number of Speeds1
Fan TypeHeavy Duty
Number of Blades4
Motor TypeTotally Enclosed Air Over
Mounting LocationWall
Wattage1840 W
MaterialAluminum
Phase3
Blade TypeGalvanized Steel
Manufacturers Part Number20860
Indoor/OutdoorIndoor
BrandAirmaster Fan
RPM1125 rpm
CFM12400 CFM
Horsepower1 HP
ColorGray
Amperage4 A
Drive TypeDirect Drive
Hertz60 Hz
Voltage208 / 230 / 460 V
CFM High12400 CFM
Oscillating/Non OscillatingNon Oscillating
FeaturesHard Wired
Power Cord TypeNot Included

Warranty

Warranty5 yr

Compliance & Certifications

CertificationsUL, cUL Listed
