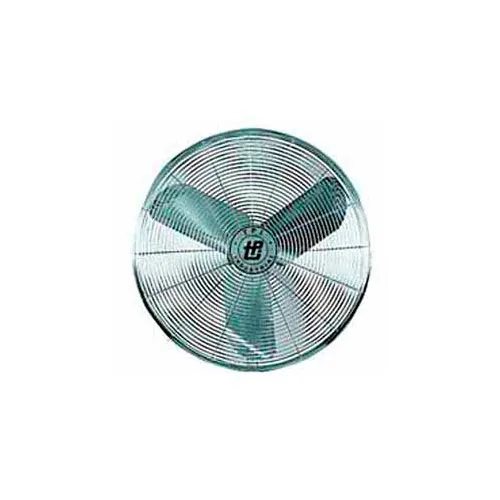

TPI IHP30H277 30" Fan Head Non Oscillating, 1/3 HP, 5400 CFM, 277V, 1 PH
|
Questions & Answers (0)
Product Description
REPLACEMENT FAN HEADS
Non-Oscillating 277V Fan Head
These quality fans include an enclosed permanently lubricated, PSC-type ball bearing single-phase motor for long life and optimum performance. 3 quiet aluminum blades are enclosed in double locking steel wire guards for safety. Pivot-action fan head allows vertical tilt angle adjustments. Meets OSHA standards, UL Listed ,cETL Listed.. Replace or upgrade fan heads with industrial quality air circulator heads. Includes junction box for hard wiring. Horsepower rating based upon maximum speed/load.
Non-Oscillating 277V Fan Head
These quality fans include an enclosed permanently lubricated, PSC-type ball bearing single-phase motor for long life and optimum performance. 3 quiet aluminum blades are enclosed in double locking steel wire guards for safety. Pivot-action fan head allows vertical tilt angle adjustments. Meets OSHA standards, UL Listed ,cETL Listed.. Replace or upgrade fan heads with industrial quality air circulator heads. Includes junction box for hard wiring. Horsepower rating based upon maximum speed/load.
PRICE
$725.00
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 44 lbs |
| Fan Diameter | 30 in |
Product Details
| Assembly Required | No |
| RPM | 1125 rpm |
| Type | Industrial |
| CFM | 4700/5400 CFM |
| Horsepower | 1/3 HP |
| Color | Gray |
| Number of Speeds | 2 |
| Amperage | 1 A |
| Hertz | 60 Hz |
| Number of Blades | 3 |
| Motor Type | Totally Enclosed |
| Voltage | 277 V |
| Material | Steel |
| Phase | 1 |
| Oscillating/Non Oscillating | Non-Oscillating |
| Power Cord Type | Hardwire |
| Manufacturers Part Number | IHP30H277 |
| Brand | TPI |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | ETL, cETL Listed |
