M&W

Model # :WBB563729

MPN #: 14669

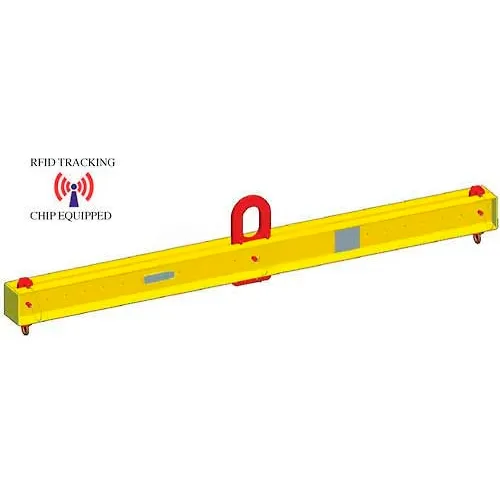

M&W 36"-72" Lift Beam Adjustable Length - 6000 Lb. Capacity

Product Description
Features:

  • For use in construction & industrial applications with overhead, gantry, or jib cranes to attach to a wide range of loads
  • Acts as a crosspiece for spacing the hooks or chains that hold loads such as bars, racks, rolls, cylinders, and machinery
  • Provides quick and easy adjustment of unbalanced loads and is ideally suited to low headroom applications
  • Shackle bottoms standard for rigging connections
  • Swivel hooks, eye hooks, and custom connections available
  • Manufactured to exceed all ASME B30.20 and OSHA regulations
  • Individually proof loaded per OSHA requirements and shipped with certification paperwork
  • RFID tracking chip equipped.
  • The upper bail is 32 inches which is adjustable in increments of 3.
PRICE
$3,149.00

1
1
Ships in 13 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Height16-5/16 in
Weight Capacity6000 lbs
Weight170 lbs
Spread36 to 72 in
Upper Bail Adjustment24 in
Dimension C1.5 in
Dimension A3 in
Head Room14-13/16 in
Dimension B5 in
Upper Bail3 x 5 in
Dimension D0.63 in

Product Details

Assembly RequiredNo
ColorYellow
MaterialSteel
Manufacturers Part Number14669
BrandM&W
