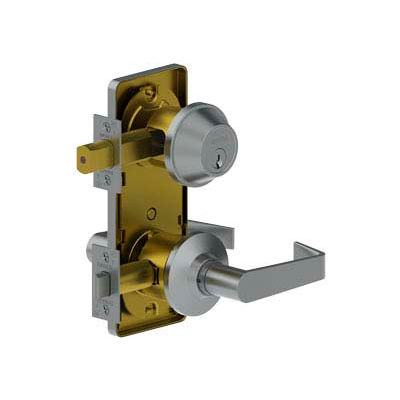

3753 Grade 2 Interconnected Lock - Interconnected Double Locking Entry 2-3/4" Us26d Arc Scc Kd Tee

3753 Grade 2 Interconnected Lock - Interconnected Double Locking Entry 2-3/4" Us26d Arc Scc Kd Tee

Item #: WBB528647

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $217.95

Save $10.90 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

3710 Grade 2 Interconnected Lock - Interconnected Single Locking Entry 2-3/4" Us3 Wtn Scc Kd Tee

3710 Grade 2 Interconnected Lock - Interconnected Single Locking Entry 2-3/4" Us3 Wtn Scc Kd Tee

3710 Grade 2 Interconnected Lock - Interconnected Single Locking Entry 2-3/4" Us26d Wtn Scc Kd Tee

3710 Grade 2 Interconnected Lock - Interconnected Single Locking Entry 2-3/4" Us26d Wtn Scc Kd Tee

Hager 3500 Series Grade 2 Cylidnrical Lock - Passage

Hager 3500 Series Grade 2 Cylidnrical Lock - Passage

3553 Grade 2 Cylindrical Lock - Entry 2-3/4" Us26d Wtn Nc Asa Ic

3553 Grade 2 Cylindrical Lock - Entry 2-3/4" Us26d Wtn Nc Asa Ic

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Global Industrial™ Aluminum Door Closer, Manual, Hydraulic, For Internal and External Use

Global Industrial™ Aluminum Door Closer, Manual, Hydraulic, For Internal and External Use

Global Industrial™ Cabinet for Barracuda Intruder Defense 44 x 16 x 6.5

Global Industrial™ Cabinet for Barracuda Intruder Defense 44 x 16 x 6.5

3753 Grade 2 Interconnected Lock - Interconnected Double Locking Entry 2-3/4" Us26d Arc Scc Kd Tee

Features

  • Lifetime warranty
  • Cylindrical chassis
  • No exposed mounting screws
  • Non-handed
  • Conventional cylinder or Small Format Interchangeable Core housings available
  • Standard Door Prep: , 4 (102 mm) center of deadbolt to center of lock chassis, 2-1/8 (54 mm) Diameter (Cross Bore), Latch Hole: 1 (25 mm) Diameter (Edge Bore)
  • Certifications: BHMA Certified ANSI A156.12 Grade 2, ADA Compliant ANSI A117.1 Accessibility Code, UL/cUL Listed for all functions up to 3 hours for A label single doors UL10C/UBC 7-2 (1997) Positive Pressure Rated UL10B Neutral Pressure Rated
  • Exposed Trim: Wrought Brass or Bronze, cast zinc leverLock Chassis: Heavy gauge steel, zinc dichromated, Thru-bolt mounting
  • Rose Diameter: 2-1/2 (63 mm)
  • Outside Escutcheon:3-5/16 x 7-15/16 x 3/8 (84 mm x 202 mm x 10 mm) Inside Escutcheon:3-1/16 x 7-15/16 x 1/8 (78 mm x 202 mm x 3 mm)Keys: Two operating keys supplied per lock
  • Cylinders/Cores: Brass - Keyed Different - C Keyway, Drilled 6-pin, keyed 5-pin - Standard,Other keying options, including keyed 6-pin, available from the factory, Small Format Interchangeable Core housing available, SFIC uncombinated or combinated, brass 6- or 7-pin sold separately
  • Door Thickness: 1-3/8 - 1-3/4 (35 mm - 45 mm) - Standard, 2 (52 mm) Doors - Optional
  • Backsets:2-3/4 (70 mm) - Standard 2-3/8 (60 mm) - Optional
  • Latchbolt: 1/2 (13 mm) Throw - Stainless Steel, 1-1/8 x 2-1/4 (29 mm x 57 mm) Faceplate for 2-3/4 (70 mm) backset
  • 1 x 2-1/4 (25 mm x 57 mm) Faceplate for 2-3/8 (60 mm) backset
  • Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only Square corner faceplate standard, round corner available
  • Deadbolt: 1 (25 mm) Throw - brass with concealed steel roller to prevent sawing or cutting, 1-1/8 x 2-1/4 (29 mm x 57 mm) faceplate for 2-3/4 (70 mm) bracket, 1 x 2-1/4 (25 mm x 57 mm) faceplate for 2-3/8 (60 mm) faceplate
  • Strikes: 3933 Square Corner T-Strike with Plastic Dust Box, 1-1/8 x 2-3/4 (29 mm x 70 mm) Standard, 3930 Square Corner Strike Plate with Dust Box,1-1/8 x 2-3/4 (29 mm x 70 mm) - Standard
  • Functions: 10 Single Locking Entry, 53 Double Locking Entry
  • Finishes: US3, US4, US10, US10B, US26, US26D
  • Lever Options: Archer, August, Withnell levers
  • Options: Split finish, Split lever design

Product Details

  • Type Double Locking Entry
  • Brand Hager Companies
  • Description Grade 2 Interconnected Lock
  • Warranty Lifetime
  • Finish Satin Chrome Plated
  • Units 1
  • Manufacturers Part Number 375302N26D000ACDT
