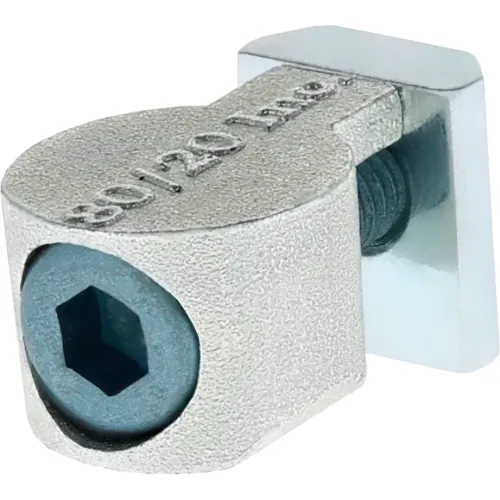

80/20® 25 Series Anchor Fastener w/ M5 Bolt & Standard T-Nut, Bright

The anchor fastener cam is commonly used with a socket head cap screw and T-nut to form custom anchor fastener assemblies. An anchor fastener connection method requires a counterbore machining service on the mounting profile.

The standard end fastener assembly is comprised of a button head socket cap screw and wing clip. The end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The winged tabs of the clip prevent the mating profile from rotating. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.

80/20 3100 Double Anchor Fastener, Short Assembly Features: One of 80/20's strongest fastening options Allows infinite position ing along a T-slotted profile Provides a vibration-proof, clean, flush connection where space restrictions apply Creates 90° connections where T-slots are in alignment Profile must have T-slots opposite each other Short assemblies mount across the 1.0" dimension for 10 Series and 1.5" dimension for 15 Series Long assemblies mount across the 2.0" dimension for 10 Series and 3.0" dimension for 15 Series

80/20 3362 Anchor Fastener Features: One of 80/20's strongest fastening options Allows infinite position ing along a T-slotted profile Provides a vibration-proof, clean, flush connection where space restrictions apply Creates 90° connections where T-slots are in alignment Ships pre-assembled, saving you time

The standard anchor fastener assembly is comprised of a socket head cap screw, cam, and T-nut. It is one of the strongest internal fastening methods, offering a long-lasting connection. The anchor fastener provides infinite positioning along the mating profile's T-slot, allowing a large degree of adjustability. The anchor fastener provides 90 degree, flush, vibration resistant connections, especially convenient where space restrictions apply. This connection method requires a counterbore machining service on the mounting profile.
