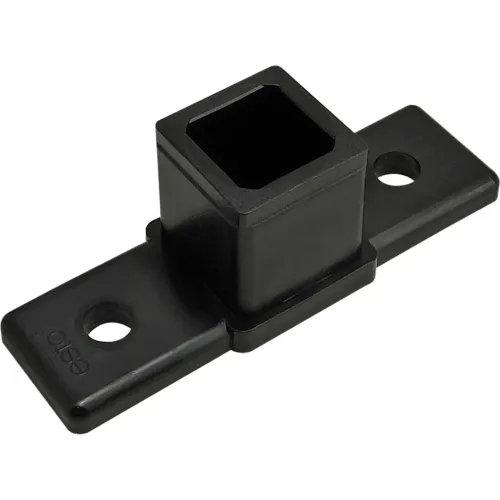

The 90 degree straight base connector is made of nylon and is used with a Quick Frame profile which has built-in ridges that bite into the fastener to create tension without the use of hardware. It is convenient for projects that will be attached or mounted at a 90 degree angle to any flat surface or T-slot profile and provides a clean, flush connection. The 90 degree straight base connector connects profiles quickly and easily using only a soft-faced mallet to form light-duty yet sturdy builds.
Share
Spec Sheet
80/20® Quick Frame Series 90 Deg Base Connector, Black
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$2.57
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 3 |
| Dimension A | 1 |
| Dimension B | 1 |
Product Details
| Type | 90 Degree Straight Base Connector |
| Material | Nylon |
| Series | Quick Frame |
| Manufacturers Part Number | 9240 |
| Brand | 80/20 Inc |
