- Angled for Control-The tips are angled to securely hold the ring with a downward pressure, preventing the ring from slipping off.
- Hardened for Strength-The tips and jaws are made from two different materials, each optimized for its function. Hardened bearing steel is used for the tips to enhance shear strength.
- Crimped-In Cylindrical Tips-The tips are smooth, straight, and free of burrs to create a consistent, controlled grip on the ring. A crimp at the end of each jaw permanently holds the tips in place.
- Uncompromised Design for a Single Purpose-These pliers are built for a single, dedicated purpose. By keeping things simple and free of unnecessary features, they remain lean and optimized for the job. Just grab them and go-no adjustments, loose parts, or compromises.
- Secure Hold for Reduced Twisting-The combination of the outward angled tips and the flat surface at the base of the tips creates a very secure hold on the ring which reduces twisting and the risk of slipping off.
- Long, Slim Jaws for More Access-The long, slim jaws and compact joint allow you to reach deep into a cavity or bore.
- Spring-Loaded, Bolted Joint-The two forged handles are permanently bolted together and spring-loaded. The spring is oiled and housed inside the joint, keeping it hidden and protected while providing smooth, quiet operation. The joint is not adjustable or serviceable.
- For Internal Ring Sizes (Bore ID)-IN 1-3/4 to 3 in. (ASME)
- For External Ring Sizes (Shaft OD)-IN 1-1/2 to 2-1/2 in. (ASME)
- Broad, Comfortable Handles-The forged handles get wider in the center and are coated with vinyl grips to improve control and comfort.
- Clear Markings-The tip size and function are clearly laser-marked on the pliers for quick reference.

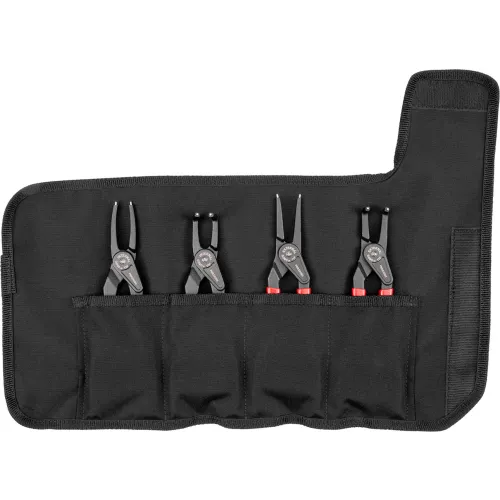

- Easy-Access Design-The roll design keeps the pliers securely in place, preventing them from sliding out while allowing quick access.
- Durable Material-The polyurethane-backed 600 x 600 denier polyester is both abrasion and tear resistant, and has a Durable Water Repellent (DWR) coating.
- Secure Hook-and-Loop Fastener-The roll can be rolled up and closed securely using a hook-and-loop style fastener.
- Long, tapered nose with fine tip is bent to 45 degrees to reach around obstructions
- Crosscut teeth distribute force evenly for sure grip in any direction
- Teeth are cut along the full length of jaw, not just at the tip, maximizing useful contact area
- Recessed coil spring gently assists opening to minimize hand fatigue
- Wide, flat handles with slim, nonslip grips provide comfortable fingertip control
- Tips-Made of E52100 bearing steel hardened to 47–53 HRC with nickel plating.
- Jaws-Made of 1045 steel hardened to 37–43 HRC with black oxide finish and a light coating of rust inhibitor.
- Pivot Screw-Made of 1015 steel with nickel plating. Non-removable.
- Handle Grips-Made of single-layer vinyl.
- Internal Spring-Made of 1065 spring steel. Oiled.
- 9 Inch Internal Retaining Ring Pliers (0.090 in. Tips)
- 9 Inch 90-Degree Internal Retaining Ring Pliers (0.090 in. Tips)
- 9 Inch External Retaining Ring Pliers (0.090 in. Tips)
- 9 Inch 90-Degree External Retaining Ring Pliers (0.090 in. Tips)
- Retaining Ring Pliers Roll
