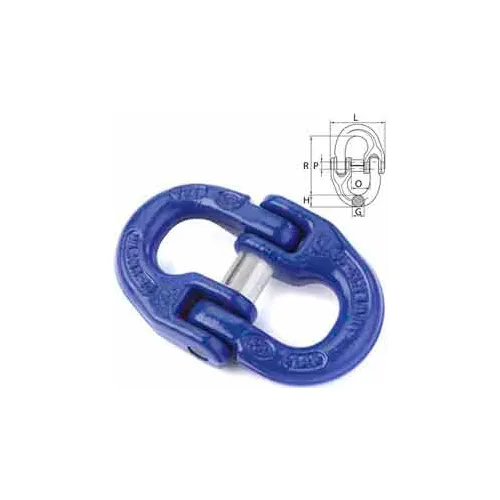

Peerless™ 8453100 9/32" V10 Coupling Link

Suitable for use with both Grade 80 and Grade 100 chain Individually proof-tested at 2-1/2 times Working Load Limit with certification Locking system that provides for simple assembly and disassembly...no special tools needed 25% stronger than Grade 80 Meets ASTM A-952-96 standards for Grade 100 chain fittings Forged alloy steel, Quenched and Tempered Fatigue rated

Peerless™ 8553180 9/32" G8 Mechancal Coupling Link Proof tested at twice the working load limit. Fatigue tested at 1.5 times the working load limit for 20,000 cycles. Meet or exceed ASTM A952 and OSHA 1910 standards.

Entire clip is Galvanized to resist corrosive and rusting action. Based on the catalog breaking strength of wire rope, Crosby wire rope clips have an efficiency rating of 80% for 3/16"-7/8" sizes, and 90% for sizes 1" through 1-1/2". Bolts are an integral part of the saddle. Nuts can be installed in such a way as to enable the operator to swing the wrench in a full arc for fast installation. All sizes have forged steel saddles. All Clips are individually bagged or tagged with proper application instructions and warning information. Meets or exceeds all requirements of ASME B30.26 ...

Used to reinforce eyes of cable assemblies to reduce abrasion. Method of Application: Turn back specified amount of rope from the thimble. Apply the first clip one base width from the dead end of the wire rope. Apply the next clip as near the logo as possible. Turn on the nuts but do not tighten. Space additional clips equally between the first two. Take up rope slack. Tighten all nuts evenly on all clips.

CM® Midland Industrial Government Rated Carbon Anchor Bolt & Nut Shackle - 17 Ton - 1-1/2" Bolt & Nut Anchor/Chain Shackles provide the most secure pin arrangement and will resist axial loading and torsional loading, but should only be used in applications where shackle is infrequently or never removed. These shackles meet requirements of Federal Specification RR-C-271D Amendment 1 All shackle pins are forged from alloy steel, heat treated and tempered to give greater strength All shackles are marked with size (inches and millimeters) and working load limit in tons Ultimate strength ...
