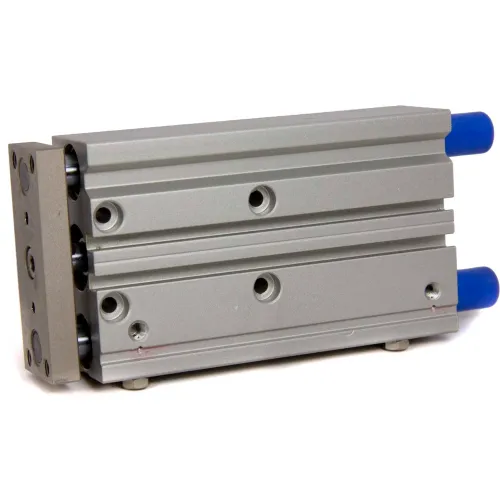

MFD's Extruded Thruster is a rugged, guided actuator with a cylinder integral to the thruster block. The sleek body incorporates a groove for switch mounting for a clean, space-efficient package. The thrusters can be mounted with screws from the top, bottom, or base or by using T-slots on the bottom. Internal bronze guide bearings are ideal superior performance in applications with higher side loads and moments.
Features
- 1/4 NPT Port Size
- Lubrication Not Required
- 213 Proof Pressure PSI
- 18 to 142 Pressure Range PSI
- 23 to 158°F Temperature Range
- Double Acting
- Fluid Air (Clean/Dry)
- Bumper Cushion Type
- ± 0.08° Non-Rotate Tolerance
- 40mm Cylinder Bore
- 125mm Cylinder Stroke
- Bronze Bearing Guided Style
