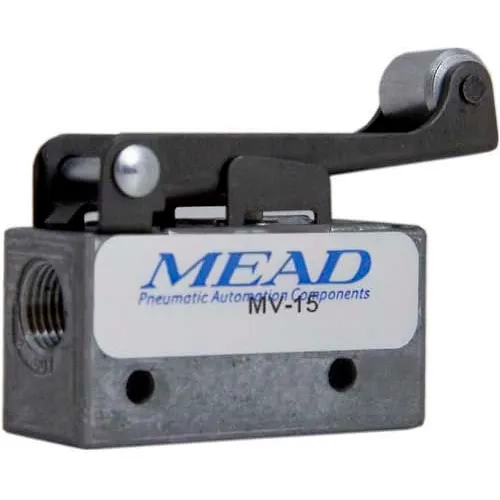

Bimba-Mead Air Valve MV-15, 3 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Roller Leaf Actuator

Bimba-Mead Air Valve MV-15, 3 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Roller Leaf Actuator

Item #: WBB571923

(1)

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $39.95

Save $2.00 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Bimba-Mead Air Valve MV-140, 3 Port, 2 Pos, Manual, 1/8" NPTF Port, Palm Actuator

Bimba-Mead Air Valve MV-140, 3 Port, 2 Pos, Manual, 1/8" NPTF Port, Palm Actuator

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Bimba-Mead Air Valve MV-45, 3 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Straight Plunger Actr

Bimba-Mead Air Valve MV-45, 3 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Straight Plunger Actr

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Bimba-Mead Shutoff/Relief Valve MGZ300-10-T, 3/8" NPT, Bracket

Bimba-Mead Shutoff/Relief Valve MGZ300-10-T, 3/8" NPT, Bracket

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Bimba-Mead Air Valve MV-15, 3 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Roller Leaf Actuator

MV air switches are 3-way 1/8" ported air pilot valves that are identical in size, actuating style, and mounting characteristics to most industrial type electric limit switches. Use them in place of electric limits to save on hookup cost and eliminate spark hazard. MV valves simplify circuits by eliminating the need for wire shielding, transformers, and solenoids. The MV air switch may be piped normally closed, normally open, or as a diverter.

  • LENGTH INCHES 2-3/16
  • WIDTH INCHES 1/16
  • HEIGHT INCHES 1-5/8
  • BRAND Bimba-Mead
  • DESCRIPTION MV Air Switch
  • MANUFACTURERS PART NUMBER MV-15
  • TYPE 3-Way 1/8"Ported Pilot Valve
  • ACTUAL STROKE DISTANCE OVER 0.079
  • SPOOL Viton
  • ACTUATOR Steel Roller
  • LUBRICATION Not Required
  • FLOW AT 100 PSI 6 SCFM
  • ACTUAL STROKE DISTANCE FULL 0.137
  • BODY Cast Zinc
  • STROKE DISTANCE TO OPEN 0.1
  • FILTRATION 40 Micron
  • CYCLE LIFE 7-10 Million
  • FORCE TO ACTUATE As Low as 6.4 Ounces
  • FLUID Air
  • MEDIA Air or Inert Gas
  • PRESSURE RANGE Vacuum to 120 PSI
  • FLOW Cv = 0.11
  • SEALS Dupont® Teflon
  • PORT SIZE 1/8" NPT
  • AMBIENT OPERATING TEMPERATURE 115° F
  • ACTUATION FORCE AT 100 PSI 1.0 Lbs (NC); 1.3 Lbs (NO)
