Canarm

Model # :WBB3192089

MPN #: ALX105-DD013V

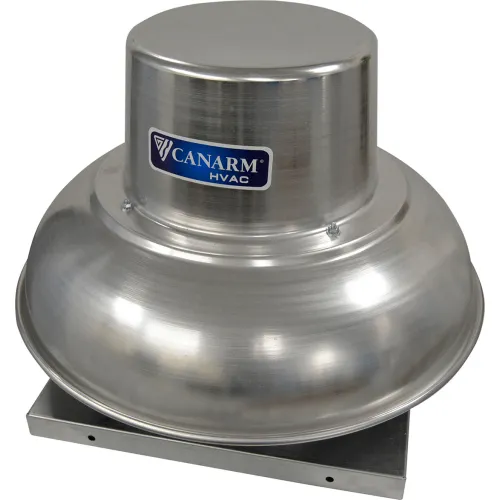

Canarm® ALX 10-1/2" Roof Exhauster Direct Drive Down Blast, 950 CFM, 1/8 HP, 120/240V

Product Description
Ideal for exhausting air from factories, offices, warehouses or commercial buildings. The ALX series spun aluminum exhaust fan can be used as either a roof top or wall mount exhaust fan.

Features:
  • Spun aluminum housing will not rust, chip or peel.
  • Aluminum backward inclined wheel is non-overloading.
  • All motors are 1 Phase 120/240V operation and can be operated at 50 or 60 Hz.
  • All units can be wall mounted.
  • Variable speed PSC Motors available on ALX105/120/135.
  • Quick release latches for easy motor access on ALX135 – ALX165.
  • Comes with bird screen.


PRICE
$615.00

1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Height18 in
Weight90 lbs
Fan Diameter10-1/2 in
Base Dim.19 in²
Base Length19 in

Product Details

RPM1650 rpm
CFM950 CFM
Horsepower1/8 HP
ColorGray
Number of SpeedsVariables
Drive TypeDirect Drive
Hertz60 Hz
Speed ControllableY
Motor TypeOpen Dripproof
Voltage120/240 V
CFM High950 CFM
MaterialAluminum
Phase1
DescriptionDownblast Direct Drive Spun Alum Exhauster
Manufacturers Part NumberALX105-DD013V
BrandCanarm

Warranty

Warranty1 yr

Compliance & Certifications

CertificationscETLus
