Canarm

Model # :WBB3191903

MPN #: ALX210-UD100EC

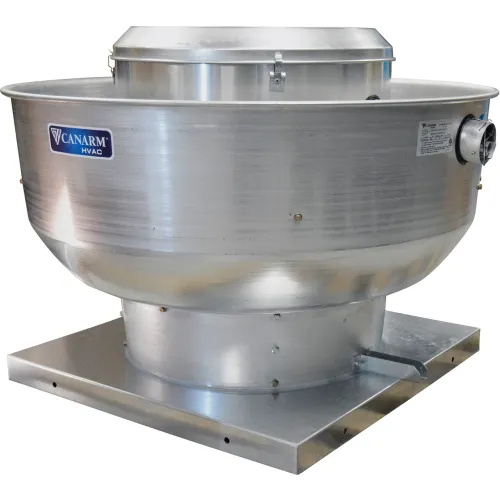

Canarm® ALX 21" Roof Exhauster Direct Drive Upblast, 4300 CFM, 1 HP, 120/240V

Product Description
Ideal for exhausting air from restaurants, offices, warehouses or commercial buildings. The ALX series spun aluminum exhaust fan can be used as either a roof top or wall mount exhaust fan.

Features:
  • Spun aluminum housing will not rust, chip or peel
  • Aluminum backward inclined wheel is non-overloading
  • All motors are 1 Phase 120/240V operation and can be operated at 50 or 60 Hz
  • All units can be wall mounted
  • Quick release latches for easy motor access
  • EC motors offer true variable speed operation and up to 70% energy savings over PSC motors
  • On-board speed adjustment allows simple setup and balancing with LED display
  • Can be controlled remotely up to 50' using a remote mount potentiometer or 0-10V
  • Featuring EC Motors - Up to 82% Efficiency


PRICE
$2,249.00

1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Height36-1/4 in
Weight220 lbs
Fan Diameter12-1/4 in
Base Dim.33-1/8 in²
Base Length33-1/8 in

Product Details

RPM900 rpm
CFM4300 CFM
Horsepower1 HP
ColorGray
Number of Speeds1
Drive TypeDirect Drive
Hertz60 Hz
Operating Temperature300° F
Motor TypeOpen Dripproof
Voltage120/240 V
CFM High4300 CFM
MaterialAluminum
Phase1
DescriptionUpblast Direct Drive Spun Alum Exhauster
Manufacturers Part NumberALX210-UD100EC
BrandCanarm

Warranty

Warranty1 yr

Compliance & Certifications

CertificationsUL
