Features:
- Spun aluminum housing will not rust, chip or peel
- Aluminum backward inclined wheel is non-overloading
- Belt drive
- Units up to 24" can be wall mounted
- Quick release latches for easy motor access

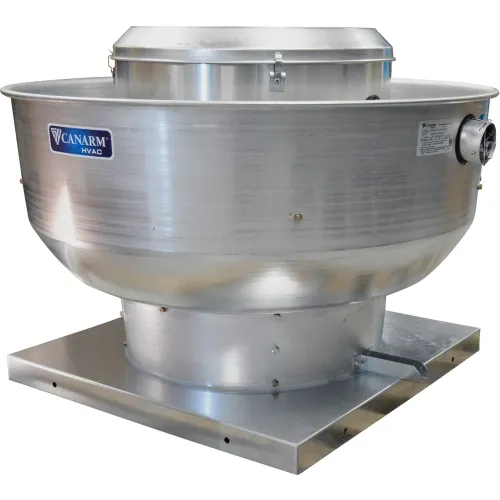

Canarm® ALX 18-1/4" Roof Exhauster Belt Drive Upblast, 3969 CFM, 2 HP, 115/230V
Write a Review
|
Questions & Answers (0)
Product Description
Ideal for exhausting air from restaurants, offices, warehouses or commercial buildings. The ALX series spun aluminum exhaust fan can be used as either a roof top or wall mount exhaust fan.
Features:
Features:
PRICE
$1,799.00
1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Height | 31-3/4 in |
| Weight | 210 lbs |
| Fan Diameter | 18-1/4 in |
| Base Dim. | 28 in² |
| Base Length | 28 in |
Product Details
| RPM | 1419 rpm |
| CFM | 3969 CFM |
| Horsepower | 2 HP |
| Color | Gray |
| Number of Speeds | 1 |
| Drive Type | Belt Drive |
| Sones | 30 |
| Operating Temperature | 300° F |
| Speed Controllable | Y |
| Motor Type | Open Drip proof |
| Voltage | 115/230 V |
| CFM High | 3969 CFM |
| Material | Aluminum |
| Phase | 1 |
| Description | Belt Drive Spun Alum Exhauster |
| Manufacturers Part Number | ALX180UBT10200 |
| Brand | Canarm |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | UL705 |
