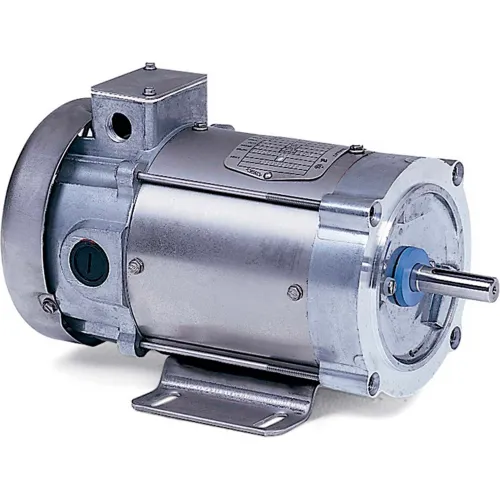

Baldor-Reliance Motor CDPSWD3555, 1HP, 1750RPM, DC, 56C, 3536P, TEFC, F1

Baldor-Reliance Motor, ... Features: UL/CSA recognized and CE certified CEUHM/VEUHM motors are Super-E® with NEMA Premium® efficiency CUHM/VUHM motors are EPAct efficiency and all are inverter-ready 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors 56-140 frames have low profile F3 top-mounted conduit box 3 year warranty on Super-E® motors Typical Applications: Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Baldor-Reliance Unit Handling Motor, CEBM3710T-D, 3 PH, 7.5 HP, 208-230/460 V, 1770 RPM, TEFC, 213TC Frame Baldor-Reliance's line of Unit handling motors are designed for a wide variety of applications in baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door openers. These motors are available from stock in ratings of ½ HP thru 10HP (56 thru 215T frames) with or without Dodge D-Series brakes. Features include an oversized top mounted conduit box on 56 & 140T frames that provide easy access for making connections. Footed frames include slotted feet for ...

Baldor-Reliance Motor, ... Features: Full torque at zero speed 1000:1 constant torque range Totally Enclosed Non Ventilated (TENV) or Totally Enclosed Blower Cooled (TEBC) 1/3 thru 500 horsepower Cast Iron construction C-Face with base 143TC thru 449TC Base mount only in frames 5007L-5009L Class H Insulated ISR® (Inverter Spike Resistant) magnet wire Meets NEMA MG 1, Part 31 Typical Applications: Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horseposer to ...

Permanent Magnet DC Motors are available for 1/4 - 2 HP and wound field motors of 1/2 - 3 HP for Class I, Group D and Class II, Group F & G locations with listing by both UL and CSA. Applications include conveyors and mixers in hazardous locations. Features NEMA C-Face with welded on base UL and CSA certified Class I, Group D / Clas II Group F&G. T3c Thermostat and explosion proof conduit box included Not tach adaptable Application(s) Conveyors, feeders and pumps where variable speed and constant torque are required in hazardous locations.

Baldor-Reliance Motor, .5HP,1750RPM,3PH,60HZ,56C,3516M,TEFC,F3 Features: UL/CSA recognized and CE certified CEUHM/VEUHM motors are Super-E® with NEMA Premium® efficiency CUHM/VUHM motors are EPAct efficiency and all are inverter-ready 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors 56-140 frames have low profile F3 top-mounted conduit box 3 year warranty on Super-E® motors Typical Applications: Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.
