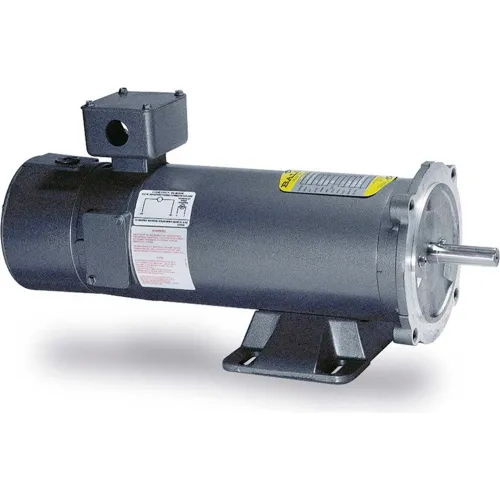

Baldor-Reliance Motor CDPT3310, .25HP, 1750RPM, DC, 56C, 3320P, TENV, F1

Baldor-Reliance has designed a Permanent Magnet DC Motor with an integral 50 VDC per 1000 RPM precision tachometer. Its compact design fits into many locations where a conventional motor won't fit. Plus it is less costly than buying the motor, tach kit and tachometer. Applications include precision metering pumps and tensioning. Features Provides an integral 50 VDC per 1000 RPM precision tachometer for closed loop drive system Class F insulation 20:1 constant torque speed range with NEMA Type control 3300P motors TENV, all others are TEFC Application(s) Conveyors and metering pumps where ...

Baldor-Reliance Motor, .75HP,1750RPM,DC,56C,3428P,TEFC,F1 Features: Moisture sealant on blot heads between frame and endplates Neoprene gasketed conduit box Double sealed ball bearings Forsheda® running contact v-ring slinger Stainless steel shaft Electrostatic epoxy paint coating Class F insulation Tach adaptable 3300P motors are TENV, all others are TEFC Typical Applications: Food processing conveyors and feeders where the motor is exposed to high pressure wash down.

Baldor-Reliance Motor, 1.5HP,1750RPM,DC,145TC,3536P,TEFC,F1 Features: Moisture sealant on blot heads between frame and endplates Neoprene gasketed conduit box Double sealed ball bearings Forsheda® running contact v-ring slinger Stainless steel shaft Electrostatic epoxy paint coating Class F insulation Tach adaptable 3300P motors are TENV, all others are TEFC Typical Applications: Food processing conveyors and feeders where the motor is exposed to high pressure wash down.

Baldor-Reliance Motor, .5HP,1750RPM,DC,56C,3428P,TEFC,F1 Features: Moisture resistant 200°C magnet wire Sealed ball bearings with moisture resistant grease Contact lip seals on shaft extensions Neoprene gaskets Special processed endplates 300 series stainless steel motor frame, base, shaft and hardware No exterior paint Tropicalized Typical Applications: Food processing, packaging and other applications where the motor is regularly exposed to high pressure washdown with caustic solutions.

Baldor-Reliance Motor, .33HP,1750RPM,DC,56C,3327P,TENV,F1 Features: Moisture sealant on blot heads between frame and endplates Neoprene gasketed conduit box Double sealed ball bearings Forsheda® running contact v-ring slinger Stainless steel shaft Electrostatic epoxy paint coating Class F insulation Tach adaptable 3300P motors are TENV, all others are TEFC Typical Applications: Food processing conveyors and feeders where the motor is exposed to high pressure wash down.
