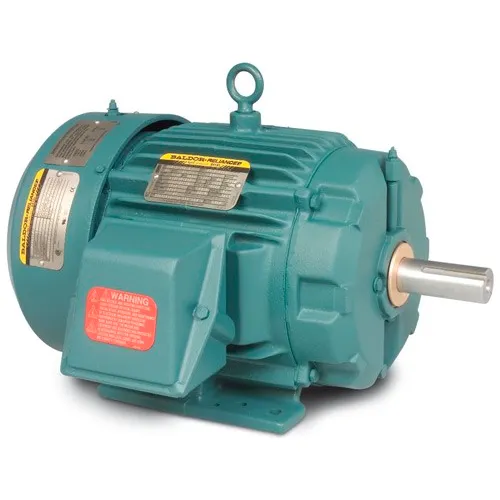

Baldor-Reliance Motor CECP83587T-5, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 0532M, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor CECP83587T-5, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 0532M, TEFC, F1

Item #: WBB388729

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,984.00 up to 36% OFF

Price: $1,268.00

$211.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor VECP3584T-4, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 0530M, TEFC

Baldor-Reliance Motor VECP3584T-4, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 0530M, TEFC

Baldor-Reliance Severe Duty Motor, CECP3581T, 3 PH, 1 HP, 208-230/460 V, 1765 RPM, TEFC, 143TC Frame

Baldor-Reliance Severe Duty Motor, CECP3581T, 3 PH, 1 HP, 208-230/460 V, 1765 RPM, TEFC, 143TC Frame

Baldor-Reliance Motor ECP3663T-4, 5HP, 3505RPM, 3PH, 60HZ, 184T, TEFC, FOOT

Baldor-Reliance Motor ECP3663T-4, 5HP, 3505RPM, 3PH, 60HZ, 184T, TEFC, FOOT

Baldor-Reliance Motor ECP4308T-4, 40HP, 1190RPM, 3PH, 60HZ, 364T, TEFC, FOOT

Baldor-Reliance Motor ECP4308T-4, 40HP, 1190RPM, 3PH, 60HZ, 364T, TEFC, FOOT

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, 2HP,1725RPM,3PH,60HZ,145TC,0532M,TEFC,F1

Features:
  • Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors
  • Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines
  • Inpro Seal® on fan and drive end shaft extensions
  • 2-part yellow epoxy oxide primer (inside & outside)
  • Gray epoxy paint and corrosion resistant hardware
  • Reduced noise, vibration and mechanical tolerances
  • Final test and vibration results shipped with motor
Typical Applications:
Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.

Weights & Dimensions

  • Dimension C 13.38 in
  • Opposite End Bearing Size 6205
  • Weight 70 lbs

Product Details

  • Power Factor 75
  • Mounting Location Rigid
  • Bearing Drive End 6205
  • Temp Code T3
  • RPM 1755 rpm
  • Poles 4
  • Grease POLYREX EM
  • Drive End Flange C-Face
  • Enclosure Type Totally Enclosed
  • Ambient Temperature 40 °C
  • KVA Code L
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Voltage 575 V
  • Frame 145TC
  • Service Factor 1.15
  • Horsepower 2 HP
  • Is_Motor Yes
  • Phase 3
  • Enclosure TEFC
  • Max KVAR 0.67
  • Full Load Efficiency 88.5
  • Brand Baldor-Reliance
  • Number of Stator Slots 36
  • Full Load Amps 2.3 FLA
  • Number of Rotor Bars 28
  • Design Code B
  • Motor RPM 60 Hertz 1755 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number CECP83587T-5

Compliance & Certifications

  • DOE Code 010A
