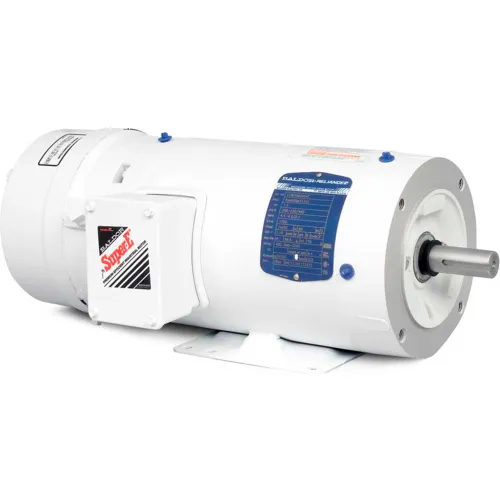

Baldor-Reliance Motor, 1HP,1740RPM,3PH,60HZ,143TC,3526M,TENV,F1
Features:
Food processing and other applications that regularly expose the motor to high pressure washdown.
Features:
- Standard NEMA BA dimension 300 series stainless steel hardware
- Moisture sealant on bolt heads, between frame and end plates
- Neoprone gaskets
- Power off manual release
- Resets automatically
- NEMA Premium® Efficiency and inverter-ready
- 230/460V brakes are connected in conduit box
Food processing and other applications that regularly expose the motor to high pressure washdown.
Weights & Dimensions
- Dimension C 16.81 in
- Weight 54 lbs
Product Details
- RPM Range 1701-1800 rpm
- Mounting Location Rigid
- Voltage 208-230/460 V
- Bearing Opp Drive End 6203
- Frame 143TC
- Brake Rating 6
- Service Factor 1.15
- Horsepower 1 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- RPM 1745 rpm
- Phase 3
- Enclosure TENV
- Brand Baldor-Reliance
- Full Load Amps 3-2.9/1.45 FLA
- Motor RPM 60 Hertz 1745 rpm
- Poles 4
- Hertz 60 Hz
- Manufacturers Part Number CEWDBM3546T
- Drive End Flange C-Face
- Ambient Temperature 40 °C
