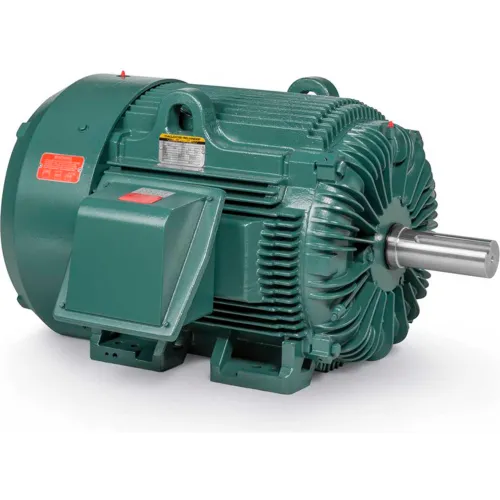

Baldor-Reliance Motor ECP4409T-4, 100HP, 1188RPM, 3PH, 60HZ, 444T, TEFC, FOOT

Baldor-Reliance Motor, 300HP,1785RPM,3PH,60HZ,449T,TEFC Features: Heavy gauge steel and cast iron frames Roller bearings for heavy belted loads (not suitable for coupled loads) ISR® (Inverter Spike Resistant®) copper windings Low-loss electrical grade lamination steel Three year warranty Typical Applications: Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque ...

Baldor-Reliance Motor, 100HP,3560RPM,3PH,60HZ,405TS,TEFC,FOOT, Features: 1.15 Service Factor Corrosion resistant epoxy finish Regreasable ball bearings Oversized rotatable cast iron conduit box Forsheda® shaft seal Moisture resistant copper windings Class F insulation Stainless steel nameplate and corrosion resistant harware Tropicalized Typical Applications: Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against ...

Baldor-Reliance Motor, 200HP,1785RPM,3PH,60HZ,447T,TEFC Features: Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines Inpro Seal® on fan and drive end shaft extensions 2-part yellow epoxy oxide primer (inside & outside) Gray epoxy paint and corrosion resistant hardware Reduced noise, vibration and mechanical tolerances Final test and vibration results shipped with motor Typical Applications: ...

Baldor-Reliance Motor, 100HP,3565RPM,3PH,60HZ,405TS,TEFC,FOOT, Features: Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines Inpro Seal® on fan and drive end shaft extensions 2-part yellow epoxy oxide primer (inside & outside) Gray epoxy paint and corrosion resistant hardware Reduced noise, vibration and mechanical tolerances Final test and vibration results shipped with motor Typical ...

Baldor-Reliance Motor, 100HP,1785RPM,3PH,60HZ,405T,TEFC,FOOT, Features: Ball bearings Suitable for mounting any position Heavy gauge steel and cast iron frames Typical Applications: Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.
