Baldor-Reliance Motor ECP84403T-5, 60HP, 1185RPM, 3PH, 60HZ, 404T, TEFC, FOOT

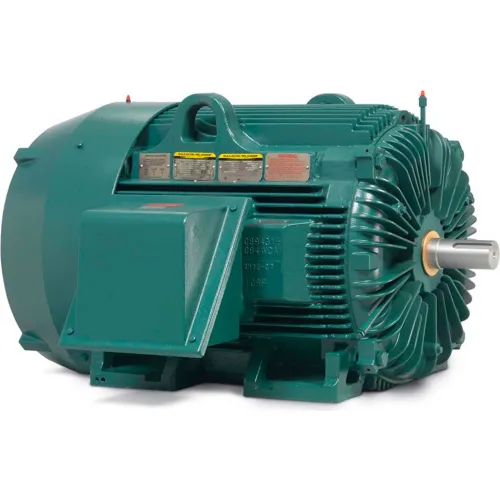

Actual product may differ from image shown

Baldor-Reliance Motor ECP84403T-5, 60HP, 1185RPM, 3PH, 60HZ, 404T, TEFC, FOOT

Item #: WBB390233

Not Yet Rated

Free Shipping

Enter zip code for delivery date estimate

Shipping to 10465 change

$23,134.00 up to 36% OFF

Price: $14,776.00

$2,462.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size C - Made In USA

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size C - Made In USA

Baldor-Reliance Motor ECP4402T, 100HP, 3560RPM, 3PH, 60HZ, 405TS, TEFC, FOOT

Baldor-Reliance Motor ECP4402T, 100HP, 3560RPM, 3PH, 60HZ, 405TS, TEFC, FOOT

Free Shipping

Baldor-Reliance Motor VECP3584T-4, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 0530M, TEFC

Baldor-Reliance Motor VECP3584T-4, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 0530M, TEFC

Baldor-Reliance Motor ECP3663T-4, 5HP, 3505RPM, 3PH, 60HZ, 184T, TEFC, FOOT

Baldor-Reliance Motor ECP3663T-4, 5HP, 3505RPM, 3PH, 60HZ, 184T, TEFC, FOOT

Baldor-Reliance Motor ECP4308T-4, 40HP, 1190RPM, 3PH, 60HZ, 364T, TEFC, FOOT

Baldor-Reliance Motor ECP4308T-4, 40HP, 1190RPM, 3PH, 60HZ, 364T, TEFC, FOOT

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size C - Made In USA

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size C - Made In USA

Baldor-Reliance Motor, 60HP,1185RPM,3PH,60HZ,404T,TEFC,FOOT,

Features:
  • Built to 841XL design
  • Upgraded electrical and mechanical design with NEMA Premium® efficient winding
  • Inpro/Seal® VBX (thru 210 frame)
  • VBXX bearing isolators on fan and drive end shaft extensions
  • Epoxy paint provides IP56 enclosure
  • Stainless breather drains
  • Proprietary cast iron frames for reduced vibration and noise
  • Terminal lugs on motor leads
  • 5-year warranty
Typical Applications:
Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841-2001 TEFC motor standards for extreme severe duty service.

Weights & Dimensions

  • Dimension C 38.31 in
  • Opposite End Bearing Size 6316
  • Weight 1,220 lbs

Product Details

  • Power Factor 86
  • Mounting Location Rigid
  • Bearing Drive End 6316
  • Winding Resistance 0.1646
  • Class I Division 2 Non XP ABCD
  • Temp Code T3C
  • RPM 1185 rpm
  • Type P
  • No Load Current 16.7 A
  • Poles 6
  • Grease POLYREX EM
  • Drive End Flange Standard
  • Ambient Temperature 40 °C
  • KVA Code G
  • Efficiency 1 95.2
  • Insulation Class F
  • RPM Range 1101-1200 rpm
  • Class II Division 2 Non XP X X X
  • Class I Zone 2 Group IIAIIBIIC
  • Voltage 575 V
  • IEEE Test 90DBA
  • Frame 404T
  • Service Factor 1.15
  • Efficiency 2 94.5
  • Horsepower 60 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous
  • Enclosure TEFC
  • Phase 3
  • Max KVAR 12.5
  • Full Load Efficiency 95
  • Brand Baldor-Reliance
  • Number of Stator Slots 90
  • Number of Rotor Bars 71
  • Full Load Amps 55.2 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1185 rpm
  • Hertz 60 Hz
  • Temperature 160
