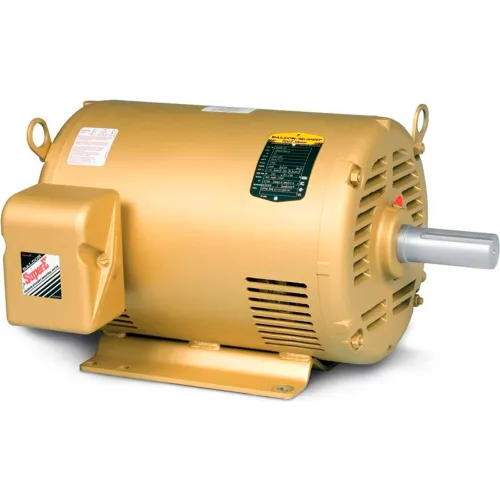

Baldor-Reliance Motor, 7.5HP,1770RPM,3PH,60HZ,213T,3733M,OPSB,F
Features:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.
Features:
- Heavy duty frames
- Ball bearings
- Moisture resistant ISR® (Inverter Spike Resistant) copper windings
- Low-loss electrical lamination grade steel
- Three year warranty.
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.
Weights & Dimensions
- Dimension C 16.32 in
- Weight 117
Product Details
- Power Factor 79
- Mounting Location Rigid
- Bearing Drive End 6307
- Poles 4
- Drive End Flange Standard
- Nameplate RPM 1770 rpm
- Ambient Temperature 40 °C
- KVA Code J
- Insulation Class F
- RPM Range 1701-1800 rpm
- Bearing Opp Drive End 6206
- Voltage 208-230/460 V
- Frame 213T
- Service Factor 1.15
- Horsepower 7 1/2 HP
- Enclosure Type Open/Drip Proof
- Is_Motor Yes
- Phase 3
- Enclosure OPSB
- Full Load Efficiency 91
- Brand Baldor-Reliance
- Full Load Amps 20.4-19.4/9.7 FLA
- Design Code A
- Motor RPM 60 Hertz 1770 rpm
- Hertz 60 Hz
- Manufacturers Part Number EM3311T
Compliance & Certifications
- DOE Code 010A
