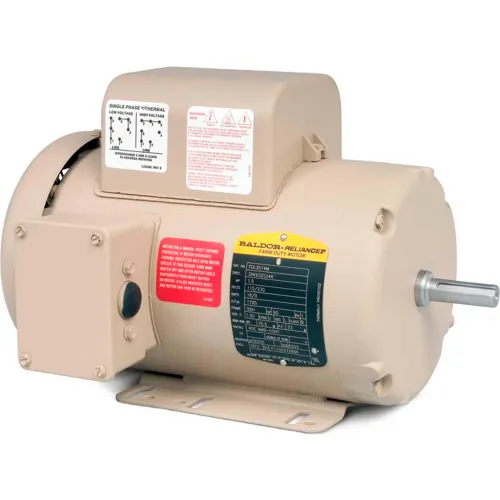

Baldor-Reliance Motor FDL3516TM, 2HP, 1725RPM, 1PH, 60HZ, 56HZ, 3535LC, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor FDL3516TM, 2HP, 1725RPM, 1PH, 60HZ, 56HZ, 3535LC, TEFC, F1

Item #: WBB389874

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,843.00 up to 39% OFF

Price: $1,124.00

$187.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor AFM3529, 1HP, 3450RPM, 3PH, 60HZ, 56Z, 3416M, TEAO, F1, N

Baldor-Reliance Motor AFM3529, 1HP, 3450RPM, 3PH, 60HZ, 56Z, 3416M, TEAO, F1, N

Baldor-Reliance Motor FDL3504M, .5HP, 1725RPM, 1PH, 60HZ, 56, 3421L, TEFC, F1, N

Baldor-Reliance Motor FDL3504M, .5HP, 1725RPM, 1PH, 60HZ, 56, 3421L, TEFC, F1, N

Marathon Motors Z128, 2HP, 115/230V, 1800RPM, 1PH, TEFC, 145T FR

Marathon Motors Z128, 2HP, 115/230V, 1800RPM, 1PH, TEFC, 145T FR

US Motors Farm Duty, 3 HP, 1-Phase, 1740 RPM Motor, FD3CM2K18

US Motors Farm Duty, 3 HP, 1-Phase, 1740 RPM Motor, FD3CM2K18

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, 2HP,1725RPM,1PH,60HZ,56HZ,3535LC,TEFC,F1

Features:
  • Ball bearings, lubricated with high temperature moisture-resistant grease
  • Condensation drains
  • Gasketed cast conduit boxed
  • Farm duty epoxy paint for protection from harsh environments
  • 1.00 Service Factor
Typical Applications:
Wide variety of agri-duty and industrial applications.

Weights & Dimensions

  • Dimension C 14.19 in
  • Opposite End Bearing Size 6203
  • Weight 51

Product Details

  • Power Factor 99
  • Mounting Location Rigid
  • Bearing Drive End 6205
  • RPM 1725 rpm
  • Poles 4
  • Drive End Flange Standard
  • Ambient Temperature 40 °C
  • KVA Code J
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Voltage 208-230 V
  • Frame 56HZ
  • Service Factor 1.15
  • Horsepower 2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Enclosure TEFC
  • Phase 1
  • Full Load Efficiency 78
  • Brand Baldor-Reliance
  • Full Load Amps 8.6-8.3 FLA
  • Design Code L
  • Motor RPM 60 Hertz 1725 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number FDL3516TM
