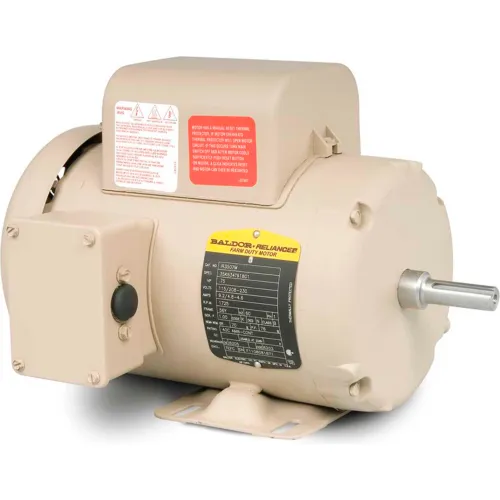

Baldor-Reliance Motor IR3507M, .75HP, 1725RPM, 1PH, 60HZ, 56Y, 3524L, TEFC, F1

Name: Baldor-Reliance Motor IR3507M, .75HP, 1725RPM, 1PH, 60HZ, 56Y, 3524L, TEFC, F1
Brand: Baldor-Reliance
SKU: B389116
Price: 899.0 USD
Availability: InStock

Write a Review

Questions & Answers (0)

Shop All Baldor Farm Duty Motors

Product Description

Baldor-Reliance Motor, .75HP,1725RPM,1PH,60HZ,56Y,3524L,TEFC,F1

Features:

Farm Duty epoxy paint protects motor from harsh environment
Manual thermal with cover mounted in conduit box for protection
Ball bearings
Condensation drains
Heavy gauge steel construction

Typical Applications:
Ideal for many farm applications such as barn cleaners, bulk feeders and industrial applications.

PRICE

$899.00

Ships in 2 Business Days

Add or Change Zip Code(s)

Easy online or call-in returns. Read return policy

Specifications

Weights & Dimensions

Weight	40
Opposite End Bearing Size	6203

Dimension C

13.25 in

Product Details

Power Factor	76
Drive End Flange	Standard
KVA Code	K
Motor RPM 60 Hertz	1725 rpm
Mounting Location	Rigid
Phase	1
Manufacturers Part Number	IR3507M
Enclosure	TEFC
Service Factor	1
Bearing Drive End	6205
Brand	Baldor-Reliance
RPM	1725 rpm

Insulation Class	B
Horsepower	3/4 HP
Frame	56Y
Hertz	60 Hz
Design Code	N
Enclosure Type	Totally Enclosed
Voltage	115/208-230 V
Full Load Efficiency	70
Full Load Amps	9.2/4.8-4.6 FLA
Poles	4
Ambient Temperature	40 °C
RPM Range	1701-1800 rpm
