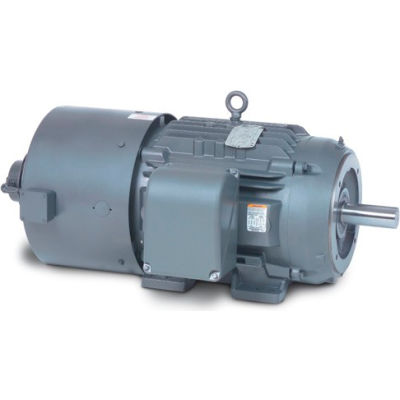

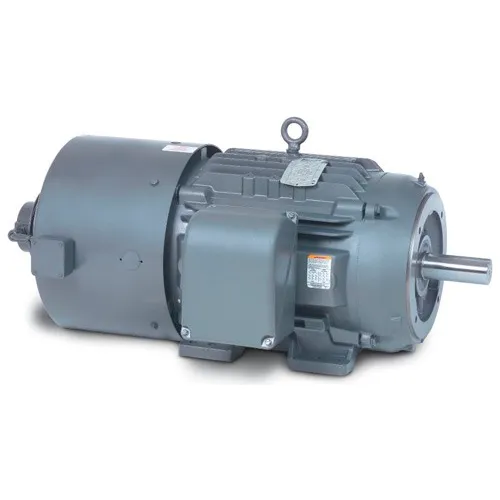

Baldor-Reliance Motor IDNM3538, .5HP, 1725RPM, 3PH, 60HZ, 56C, 3516M, TENV, F1

Baldor-Reliance Motor IDNM3538, .5HP, 1725RPM, 3PH, 60HZ, 56C, 3516M, TENV, F1

Item #: WBB388996

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$886.00 up to 30% OFF

Price: $618.00

$103.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor IDNM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3514M, TENV, F1

Baldor-Reliance Motor IDNM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3514M, TENV, F1

Baldor-Reliance Motor IDNM3534, .33HP, 1725RPM, 3PH, 60HZ, 56C, 3513M, TENV, F1

Baldor-Reliance Motor IDNM3534, .33HP, 1725RPM, 3PH, 60HZ, 56C, 3513M, TENV, F1

Marathon Motors Inverter Duty Motor, Y536, 143THTR5326, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Marathon Motors Inverter Duty Motor, Y536, 143THTR5326, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, .5HP,1725RPM,3PH,60HZ,56C,3516M,TENV,F1

Features:
  • Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meets NEMA MG 1, Part 31
Typical Applications:
Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.

Weights & Dimensions

  • Dimension C 13.84 in
  • Opposite End Bearing Size 6203
  • Weight 32 lbs

Product Details

  • Mounting Location Rigid
  • Bearing Drive End 6205
  • RPM 1725 rpm
  • Poles 4
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
  • Insulation Class H
  • RPM Range 1701-1800 rpm
  • Voltage 230/460 V
  • Frame 56C
  • Service Factor 1
  • Horsepower 1/2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Phase 3
  • Enclosure TENV
  • Slip Hertz 2.1 Hz
  • Magnetizing Current 1/.5 A
  • Full Load Efficiency 75.5
  • Brand Baldor-Reliance
  • Full Load Amps 1.6/.8 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1725 rpm
  • Hertz 60 Hz
  • Max RPM 6000 rpm
  • Rotor-Inertia 0.0949
