Features:
- Lifting eye bold mounted at top center 215T frame and larger for easy handling
- Copper windings
- Dynamically balanced rotors
Fans, blowers, machine tools, hoists, conveyors, pumps.

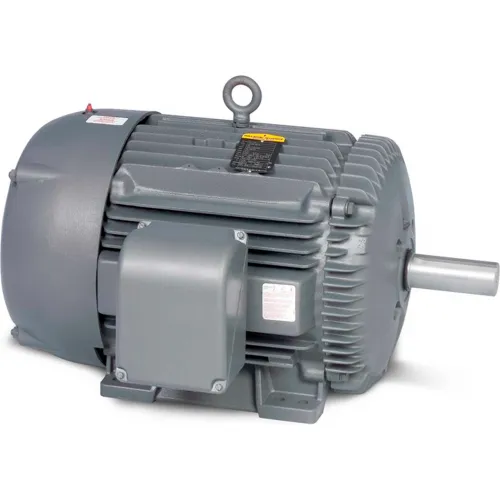

Baldor-Reliance Motor M1725T, 7.5/3.3HP, 1760/1160RPM, 3PH, 60HZ, 254T, 092
Write a Review
|
Questions & Answers (0)
Product Description
Baldor-Reliance Motor, 7.5/3.3HP,1760/1160RPM,3PH,60HZ,254T,092
Features:
Fans, blowers, machine tools, hoists, conveyors, pumps.
Features:
Fans, blowers, machine tools, hoists, conveyors, pumps.
PRICE
$4,959.00
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 219 |
| Opposite End Bearing Size | 6208 |
| Dimension C | 23.28 in |
Product Details
| RPM | 1760/1160 rpm |
| Insulation Class | F |
| Horsepower | 7-1/2 HP |
| Frame | 254T |
| Hertz | 60 Hz |
| Design Code | B |
| Drive End Flange | Standard |
| KVA Code | H |
| Enclosure Type | Totally Enclosed |
| Mounting Location | Rigid |
| Voltage | 460 V |
| Phase | 3 |
| Full Load Amps | 10.3/5.7 FLA |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Poles | 6; 4 |
| Bearing Drive End | 6309 |
| RPM Range | 1701-1800 rpm |
| Brand | Baldor-Reliance |
| Ambient Temperature | 40 °C |
