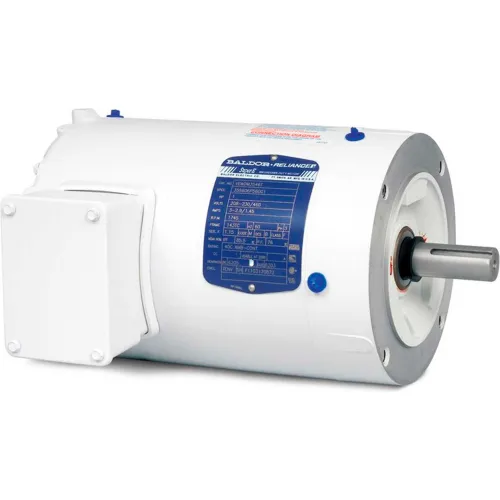

Baldor-Reliance Motor VEWDM3546, 1HP, 1750RPM, 3PH, 60HZ, 56C, 3532M, TENV, F1, N

Baldor-Reliance Motor, ... Features: All external surfaces 300 series stainless steel: motor frame, endplates, conduit box, shaft, and base Moisture resistant 200°C ISR® (Inverter Spike Resistant) magnet wire Four condensate drains in each endplate Enplate rabbets sealed and conduit box gasketed Lip seals Especially effective in highly corrosive environments where paint or other finishes do not hold up. Typical Applications: Food processing, packaging, outdoor and highly corrosive environments.

Baldor-Reliance Motor, ... Features: Moisture sealant on bolt heads, between frame and endplates Neoprene gaskets Double sealed bearings Forsheda® running contact v-ring slinger Stainless steel shaft Electrostatically applied epoxy finish Class F insulation Tropicalized Typical Applications: Food processing and other applications where motor is regularly exposed to high pressure wash down.

Baldor-Reliance Motor, ... Features: Moisture resistant ISR® (Inverter Spike Resistant) 200°C magnet wire Sealed ball bearings with moisture resistant grease Contact lip seals on shaft extensions Neoprene gaskets Special processed cast endplates 300 Series stainless steel motor frame, base, shaft and hardware No exterior paint Tropicalized Typical Applications: Food processing, packaging and outdoor applications. Severe environments where motors are washed on a regular basis.

Baldor-Reliance Motor, .5HP,1750RPM,3PH,60HZ,56C,3516M,TENV,F1 Features: All external surfaces 300 series stainless steel: motor frame, endplates, conduit box, shaft, and base Moisture resistant 200°C ISR® (Inverter Spike Resistant) magnet wire Four condensate drains in each endplate Enplate rabbets sealed and conduit box gasketed Lip seals Especially effective in highly corrosive environments where paint or other finishes do not hold up. Typical Applications: Food processing, packaging, outdoor and highly corrosive environments.

Baldor-Reliance Motor, .5HP,1755RPM,3PH,60HZ,56C,3513M,TENV,F1 Features: All external surfaces 300 series stainless steel: motor frame, endplates, conduit box, shaft, and base Moisture resistant 200°C ISR® (Inverter Spike Resistant) magnet wire Four condensate drains in each endplate Enplate rabbets sealed and conduit box gasketed Lip seals Especially effective in highly corrosive environments where paint or other finishes do not hold up. Typical Applications: Food processing, packaging, outdoor and highly corrosive environments.
