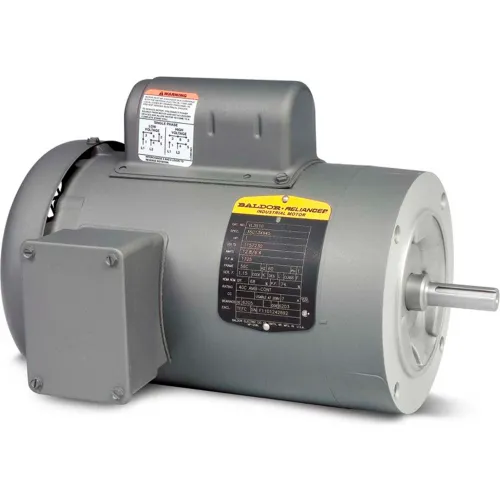

Baldor-Reliance Motor VL3509-50, 1HP, MOTOR-RPMRPM, 1PH, 50HZ, 56C, 3524L, TEFC

Name: Baldor-Reliance Motor VL3509-50, 1HP, MOTOR-RPMRPM, 1PH, 50HZ, 56C, 3524L, TEFC
Brand: Baldor-Reliance
SKU: B391260
Price: 845.0 USD
Availability: InStock

Write a Review

Questions & Answers (0)

Shop All 1-Ph 50 Hz Motors

Product Description

Baldor-Reliance Motor, 1HP,MOTOR-RPMRPM,1PH,50HZ,56C,3524L,TEFC

Features:

Heavy gauge steel frame construction
Pressue cast aluminum end plates with machined steel bearing inserts for extended bearing life

Typical Applications:
Pumps, fans, gear reducers, conveyors and many other applications with 50 Hz power supply. Motors designed to be used at rated voltage with tolerances of +/-½ 15%.

PRICE

$845.00

Ships in 2 Business Days

Add or Change Zip Code(s)

Easy online or call-in returns. Read return policy

Specifications

Weights & Dimensions

Weight

Dimension C

13.25 in

Product Details

Power Factor	84
Bearing Opp Drive End	6203
Drive End Flange	C-Face
KVA Code	H
Motor RPM 50 Hertz	2850 rpm
Mounting Location	C-Face Footless
Phase	1
Manufacturers Part Number	VL3509-50
Enclosure	TEFC
Service Factor	1.25
Bearing Drive End	6205
Brand	Baldor-Reliance
Insulation Class	B

Horsepower	1 HP
Frame	56C
Hertz	50 Hz
Design Code	N
Enclosure Type	Totally Enclosed
Voltage	110/220 V
Full Load Efficiency	68
Nameplate RPM	2850 rpm
Full Load Amps	12.6/6.3 FLA
Poles	2
Ambient Temperature	40 °C
RPM Range	1801-3000 rpm
