Features:
- Heavy gauge steel frame construction
- Corrosion resistant finish
- Ball bearings
- Suitable for mounting in any position
Many pumping systems where only single phase power is available.
Model # :WBB392133
MPN #: WCL1406T

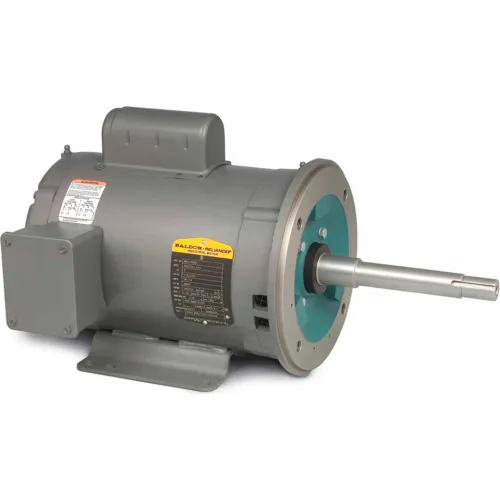

Baldor-Reliance Motor WCL1406T, 3HP, 3450RPM, 1PH, 60HZ, 182TCZ, 3628L, OPEN, F
Write a Review
|
Questions & Answers (0)
Product Description
Baldor-Reliance Motor, 3HP,3450RPM,1PH,60HZ,182TCZ,3628L,OPEN,F
Features:
Many pumping systems where only single phase power is available.
Features:
Many pumping systems where only single phase power is available.
PRICE
$1,345.00
1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 78 lbs |
| Dimension C | 12-3/8 in |
Product Details
| Power Factor | 88 |
| Bearing Opp Drive End | 6205 |
| Drive End Flange | C-Face |
| KVA Code | G |
| Motor RPM 60 Hertz | 3450 rpm |
| Mounting Location | Rigid |
| Phase | 1 |
| Manufacturers Part Number | WCL1406T |
| Enclosure | OPEN |
| Service Factor | 1.15 |
| Bearing Drive End | 6207 |
| Brand | Baldor-Reliance |
| RPM | 3,450 rpm |
| Insulation Class | B |
| Horsepower | 3 HP |
| Frame | 182TCZ |
| Hertz | 60 Hz |
| Design Code | L |
| Amps @ 208V | 14.7 A |
| Enclosure Type | Open/Drip Proof |
| Voltage | 115, 230 V |
| Full Load Efficiency | 78 |
| Full Load Amps | 28/14 FLA |
| Poles | 2 |
| Ambient Temperature | 40 °C |
| RPM Range | 3001-3600 rpm |
