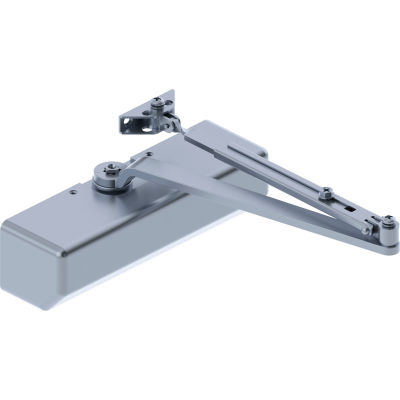

Hager 5300 Series Door Closer 5300 MLT 1-6 ALM DLY

Hager 5300 Series Door Closer 5300 MLT 1-6 ALM DLY

Item #: WBB528596

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $138.95

Save $6.95 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Hager 5300 Series Door Closer 5300 MLT 1-6 ALM DLY

Features

  • Lifetime warranty
  • Standard package contains 5301 closer body, 5302 closer cover, 5303 main arm assembly, 5304 standard screw pack, 5900 parallel arm bracket, and 5902 SNB screw pack for 1-3/4 (44 mm) door
  • Certifications: BHMA Certified ANSI A156.4, adjustable sizes 2 to 6 - Standard
  • ADA Compliant ANSI A117.1 Accessibility Code only for adjustable sizes 1 to 4 - Optional UL/cUL Listed for up to 3 hours., UL10C Positive Pressure Rated, UL10B Neutral Pressure RatedMaterials: Aluminum alloy
  • Cover: Full plastic cover and pinion cap Springs: Double heat treated steel, tempered springs
  • Valves: Adjustable latching and sweep speed valves, Adjustable backcheck valve - Standard, Delayed action valve - Optional, Staked valves - Standard
  • Handing: Non-handed
  • Arms & Brackets: Tri-Pack: Regular, Parallel Arm, and Top Jamb Mount - Standard, 15% power adjustment in standard arm for regular and top jamb mount
  • Door Thickness: 1-3/4 (44 mm)1-3/8 - 2-1/4 (36 mm - 57 mm) Optional
  • Fasteners: Self-reaming, self-tapping wood and machine screws, Sex nuts and bolts
  • Finishes: ALM, BRZ, DBZ, GOL, Rust inhibiting primer - Standard
  • Notes: Full rack and pinion operation,Precision machined, heat treated steel piston, Triple heat treated steel spindle

Product Specifications

  • WEIGHT LBS6.93 lbs
  • GRADE1
  • FITS DOOR THICKNESS INCHES1-3/4" STD, 1-3/8" - 2-1/4" Optional
  • FINISHSprayed Aluminum
  • MOUNTING DIMENSIONS9-1/16" x 3/4"
  • CERTIFICATION/APPROVALANSI/BHMA A156.4
  • BRANDHager
  • CONSTRUCTIONAluminum
  • FIRE RATING/APPROVALUL 10C
  • DESCRIPTION5300 Series Door Closer
  • WARRANTYLifetime
  • MANUFACTURERS PART NUMBER5300M16ALM0000D
  • UNITS1
