Hager

Model # :WBB486670

MPN #: 5100M16ALM

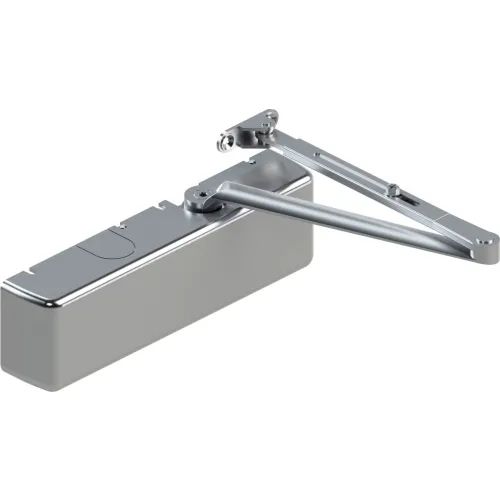

Hager 5100 Series Door Closer 5100 MLT 1-6 ALM

Product Description
Features:

  • Grade 1
  • Heavy Duty Surface Door Closer
  • Ideal for schools, hospitals, and other high-use environments
  • Lifetime warranty
  • Standard package contains 5101 closer body, 5102 closer cover, 5103 main arm assembly, 5104 standard screw pack, 5909 parallel arm bracket, and 5940 SNB screw pack for 1-3/4" doors
  • Certifications: BHMA Certified ANSI A156.4, adjustable sizes 2 to 6 - Standard
  • ADA Compliant ANSI A117.1 Accessibility Code only for adjustable sizes 1 to 4 - Optional, UL/cUL Listed for up to 3 hours, UL10C Positive Pressure Rated, UL10B Neutral Pressure Rated
  • Material: Cast Iron
  • Cover: Full plastic cover - Standard, Plated metal cover - Optional
  • Springs: One piece seamless steel spring tube, Double heat treated steel, tempered springs
  • Valves: Adjustable latching and sweep speed valves, Adjustable backcheck valve - Standard, Delayed action valve - Optional,Staked valves - Standard
  • Handing:Non-handed
  • Arms & Brackets: Tri-Pack: Regular, Parallel Arm, Top Jamb Mount - Standard
  • Door Thickness: 1-3/4" (44 mm) - Standard, 1-3/8" - 2-1/4" thick door (36 mm - 57 mm) - Optional
  • Fasteners: ALM, BRZ, DBZ, GOL, US3, US26, US26D,Rust inhibiting primer - Standard
  • Notes: Full rack and pinion operation, Precision machined, heat treated steel piston, Triple heat treated steel spindle


PRICE
$299.95

1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length12-1/2 in
Width3-1/4 in
Height2-1/4 in
Weight15 lbs
Fits Door Thickness1-3/4 STD, 1-3/8 - 2-1/4 Optional in
Mounting Dimensions5 x 2-1/4 in

Product Details

ColorAluminum
FinishAluminum
MaterialCast Iron
Description5100 Series Door Closer
Manufacturers Part Number5100M16ALM
Grade1
BrandHager

Warranty

WarrantyLifetime

Compliance & Certifications

Fire RatingUL 10C
CertificationsANSI/BHMA A156.4
