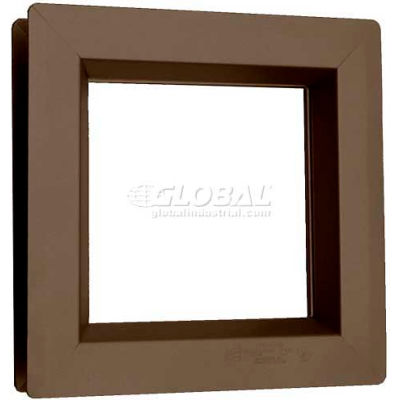

Steel Low Profile Slimline IG Vision Lite For 1" Glazing VSIG2460B 01, 24" X 60", Bronze

Steel Low Profile Slimline IG Vision Lite For 1" Glazing VSIG2460B 01, 24" X 60", Bronze

Item #: WBB997828

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$299.00 up to 29% OFF

Price: $212.95

Save $10.65 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Steel Low Profile Slimline IG Vision Lite For 1" Glazing VSIG2460B 01, 24" X 60", Bronze

VSIG - Slimline IG Vision Lite For 5/16"-1" Glass

Low Profile Beveled IG Vision Lite for Fire Rated Doors. Glazing 5/16" to 1" Thickness.

Construction: 1-1/4" trim with radius corners, mitered and welded. Continuous glass retainer, countersunk mounting holes in the bevel on non-corridor side.

Fire-Rating, Testing & Listings: When installed in properly rated and approved door, ratings up to 3 hours can be achieved, depending on the glazing used. See glazing ratings for maximum exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.

Product Specifications

  • GLASS THICKNESS INCHES5/16 - 1
  • ROUGH OPENING24" x 60"
  • SERIESVSIG
  • COLOR FINISHBronze Powder Coated
  • APPLICATIONInterior
  • MATERIAL20 Gauge CRS Frame
  • MAX SIZE INCHES60 X 104
  • MIN SIZE INCHES3 X 3
  • FITS DOOR THICKNESS INCHESFor 1-3/4" Door
  • FASTENERS#8 X 1-1/4" Flathead Phillips SMS
  • BRANDAir Louvers, Inc.
  • FIRE RATING/APPROVALUp to 3 Hours
  • DESCRIPTIONLow Profile Slimline IG Vision Lite For 1" Glazing
  • MANUFACTURERS PART NUMBERVSIG 2460B 01
