This Industrial Pipe Lifter Provides A Quick And Efficient Way To Pick And Replace Precast Concrete Pipe.

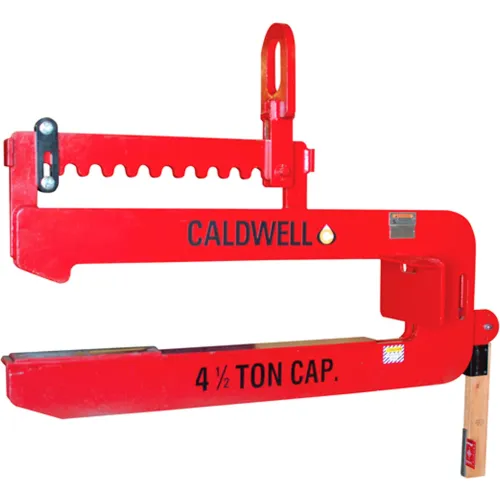

C-hook pipe lifter handles up to 8'L sections of precast concrete pipe. Pipe lifter eliminates the need to dig a hole under the pipe, increasing productivity. Multiple lifting points allow handling of a variety of pipe lengths. Bail is designed to remain upright for easy attachment. Pipe lifter can be easily hooked and attached to hoists, cranes and forklifts. All welded steel construction. Replaceable non-skid urethane saddle prevents pipe from slipping off. Meets ANSI/AWS D14.1 requirements, as well as ASME B30.20 and BTH-1 2008 standards.
Share
Spec Sheet
BESTSELLER
Caldwell C-Hook Pipe Lifter CPL-3 6000 Lb. Capacity
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$5,975.00
1
1
Ships in 4 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Weight Capacity | 6000 lbs |
| Weight | 500 lbs |
| Throat Depth | 8 in |
| Head Room | 35-2/3 in |
| Arm Length | 53 in |
| Bail Opening | 3 x 5 in |
Product Details
| Assembly Required | No |
| Material | Steel |
| Color | Red |
| Manufacturers Part Number | CPL-3 |
| Brand | Caldwell |
