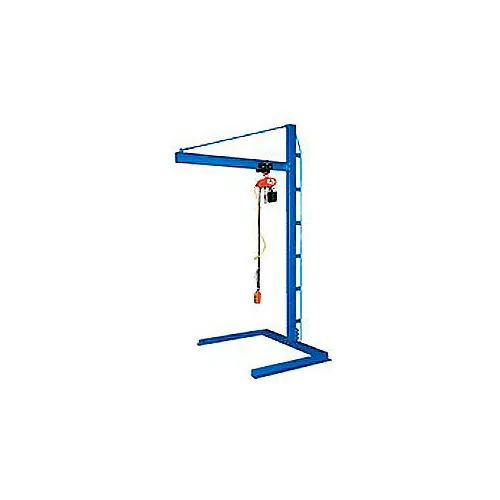

CANTILEVER FLOOR MOUNTED JIB CRANE Uniquefreestanding jib floor crane is ideal for work cells and assembly areas as the 40" outriggers can be mounted underneath a workbench, allowing product to be lifted directly from a cart. Inside straddle width is 48". I-beam offers 54" usable length and has safety stop at end of boom. Four 3/4" dia. holes in base allow lagging to floor. Constructed of high-strength steel with scratch resistant blue enamel finish. Complies with CMAA and ANSI specifications. Assembles easily. *Hoist and trolley are sold seperately.
Share
Spec Sheet
Cantilever Floor Mounted Jib Crane CJIB-6 600 Lb. Capacity
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$1,419.00
1
1
Ships in 40 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 63-3/4 in |
| Width | 54 in |
| Height | 106-3/4 in |
| Weight Capacity | 600 lbs |
| Under Beam Height | 84 in |
| Flange Width | 2-2/3 in |
| Boom Length | 54 in |
| I-Beam Height | 4 in |
Product Details
| Assembly Required | Yes |
| Color | Blue |
| Material | Steel |
| Manufacturers Part Number | CJIB-6 |
| Brand | Vestil |
