Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.

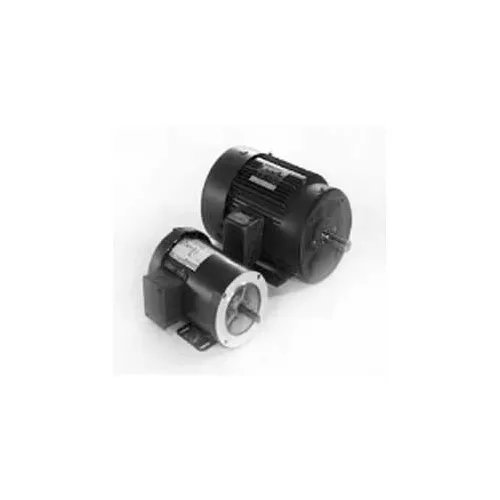

Marathon Motors Centrifugal Pump Motor, J062, 3/4HP, 208-230/460V, 3600RPM, 3PH, 56J FR, TEFC
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$455.95
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 23 lbs |
| Opposite End Bearing Size | 6203 |
| Dimension C | 12-5/16 in |
| Drive End Bearing Size | 6203 |
Product Details
| 60 Hertz kW | 0.56 kW |
| 50 Hertz Horsepower | 1/2 HP |
| 50 Hertz SF | 1.15 |
| KVA Code | N |
| Motor RPM 50 Hertz | 3000 rpm |
| IP Code | 43 |
| 60 Hertz RPM | 3600 rpm |
| Motor RPM 60 Hertz | 3600 rpm |
| 50 Hertz Voltage | 190/380 V |
| 50 Hertz FLE | 67.00 Percent FLE |
| Mounting Location | C-Face Rigid |
| Phase | 3 |
| Manufacturers Part Number | J062 |
| Enclosure | TEFC |
| 50 Hertz Full Load Amps | 3/1.5 FLA |
| Service Factor | 1.15 |
| Bearing Drive End | 6203 |
| Brand | Marathon Motors |
| 50 Hertz Kilowatts | 0.37 kW |
| RPM | 3,600, 3,000 rpm |
| Insulation Class | B |
| Horsepower | 3/4 HP |
| Orientation | Horizontal |
| Frame | 56J |
| Starting Type | Across the Line |
| Enclosure Type | Totally Enclosed |
| Voltage | 208 - 230, 460 V |
| Full Load Efficiency | 74 |
| Full Load Amps | 3-3.2/1.6 FLA |
| Duty | Continuous |
| Ambient Temperature | 40 °C |
| RPM Range | 3001-3600 rpm |
Compliance & Certifications
| CSA Certified | Y |
| CE Approved | Y |
| NEMA Design | B |
| UL | Recognized Construction |
