Direct drive condenser fans mounted vertically, shaft up. Models with open brackets should be mounted where they are shielded from rain. These motors need to be mounted within the airflow of the fan for proper cooling.

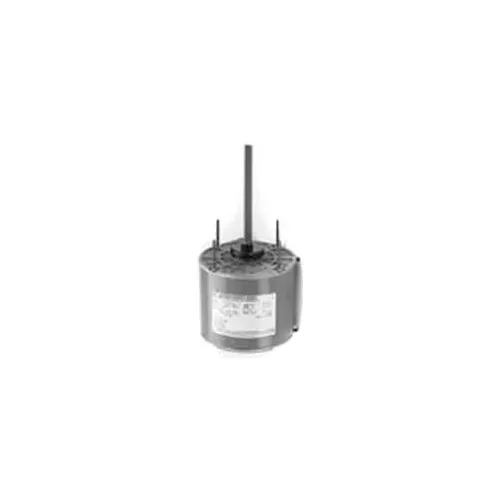

Marathon Motors Condenser Fan Motor, X420, 1/4HP, 1625 RPM, 460 V, 1 PH, 48Y FR, OPAO
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$289.95
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 12 lbs |
| Opposite End Bearing Size | 6203 |
| Drive End Bearing Size | 6203 |
Product Details
| Number of Speeds | 1 |
| Motor RPM 60 Hertz | 1625 rpm |
| Mounting Location | Extended Studs - Footless |
| Phase | 1 |
| Manufacturers Part Number | K519 |
| Enclosure | OPAO |
| Service Factor | @ 60 Hz |
| Brand | Marathon Motors |
| Bearing Type | Ball |
| Insulation Class | B |
| Horsepower | 1/4 HP |
| Frame | 48Y |
| Hertz | 60 Hz |
| Rotation | CCW ° |
| Thermal Protection | Automatic (under locked rotor only) |
| Enclosure Type | Totally Enclosed |
| Voltage | 460 V |
| Full Load Amps | 1 FLA |
| Duty | Continuous AOM |
| Rated RPM | 1625 |
| RPM Range | 1501-1700 rpm |
| Ambient Temperature | 40 °C |
