Direct drive condenser fans mounted vertically, shaft up. Models with open brackets should be mounted where they are shielded from rain. These motors need to be mounted within the airflow of the fan for proper cooling.

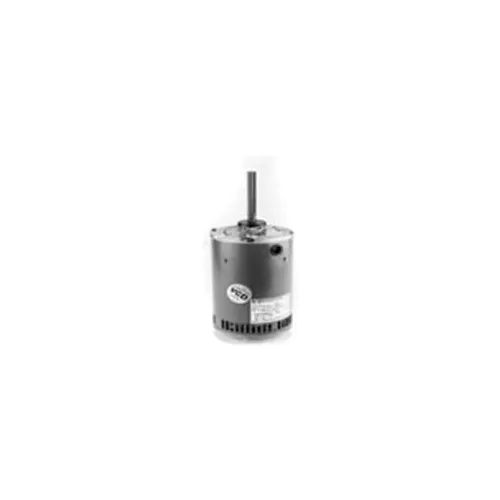

Marathon Motors Condenser Fan Motor, X513, 1HP, 1200 RPM, 208-230/460 V, 3 PH, 56HZ FR, OPAO
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$689.00
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 29 lbs |
| Opposite End Bearing Size | 6203 |
| Drive End Bearing Size | 6203 |
Product Details
| Number of Speeds | 1 |
| Motor RPM 60 Hertz | 1200 rpm |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | O005 |
| Enclosure | OPAO |
| Service Factor | 1 |
| Brand | Marathon Motors |
| Bearing Type | Ball |
| Insulation Class | H |
| Horsepower | 1 HP |
| Frame | 56HZ |
| Hertz | 60 Hz |
| Rotation | CCW ° |
| Thermal Protection | Automatic (under locked rotor only) |
| Enclosure Type | Open/Drip Proof |
| Voltage | 208-230/460 V |
| Full Load Amps | 4.1-4.2/2.1 FLA |
| Duty | Continuous AOM |
| Rated RPM | 1200 |
| RPM Range | 1101-1200 rpm |
| Ambient Temperature | 70 °C |
