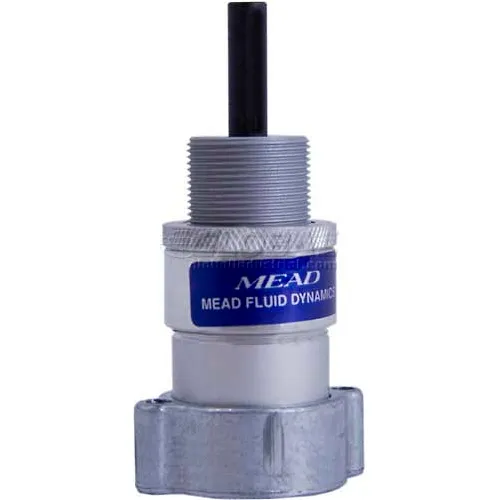

Bimba-Mead Cylinder V0X01, Single Acting 1" Bore, 0 To 1" Adjustable Stroke, Vertical Base Mount
Single-Acting Air Clamps Provide gripping power on the out stroke and spring retraction. They are ideal for use in drill fixtures and for bending, swaging, forming, crimping, & pressing operations. Because 3-way values may be used, hook-ups are quick and easy. Adjustable Stroke ModelsV0X01 is supplied with an adjustable front head so that the user may adjust the length of the stroke by as much as one inch.
Single-Acting Air Clamps Provide gripping power on the out stroke and spring retraction. They are ideal for use in drill fixtures and for bending, swaging, forming, crimping, & pressing operations. Because 3-way values may be used, hook-ups are quick and easy. Adjustable Stroke ModelsV0X01 is supplied with an adjustable front head so that the user may adjust the length of the stroke by as much as one inch.
- WIDTH INCHES 2
- TEMPERATURE RANGE -40° F to +250° F
- STROKE INCHES 0 to 1
- RETURN MAX WEIGHT IN LBS. 13
- MAX. OPERATING AIR PRESSURE 150
- LUBRICATION Petroleum Based Oil
- OUTPUT FORCE IN LBS AT 100 PSI 62
- MOUNTING STANDARD Pneumatic
- MAX. OPERATING OIL PRESSURE --
- FILTRATION 40 Micron Minimum
- BORE INCHES 1
- LENGTH INCHES 1-3/4
- HEIGHT INCHES 3-13/16
- BRAND Bimba-Mead
- MANUFACTURERS PART NUMBER V0X01
- BODY COVER Aluminum
