Bimba-Mead Direct Acting Valve M3V1-06-12VDC, 3 Port, 2 Pos, Single, 1/8" NPT, 12VDC, Cv=0.051

Bimba-Mead Direct Acting Valve M3V1-06-12VDC, 3 Port, 2 Pos, Single, 1/8" NPT, 12VDC, Cv=0.051

Item #: WBB571878

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $40.95

Save $2.05 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Bimba-Mead Air Valve MV-15, 3 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Roller Leaf Actuator

Bimba-Mead Air Valve MV-15, 3 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Roller Leaf Actuator

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Bimba-Mead Air Valve MV-140, 3 Port, 2 Pos, Manual, 1/8" NPTF Port, Palm Actuator

Bimba-Mead Air Valve MV-140, 3 Port, 2 Pos, Manual, 1/8" NPTF Port, Palm Actuator

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Bimba-Mead Shutoff/Relief Valve MGZ300-10-T, 3/8" NPT, Bracket

Bimba-Mead Shutoff/Relief Valve MGZ300-10-T, 3/8" NPT, Bracket

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

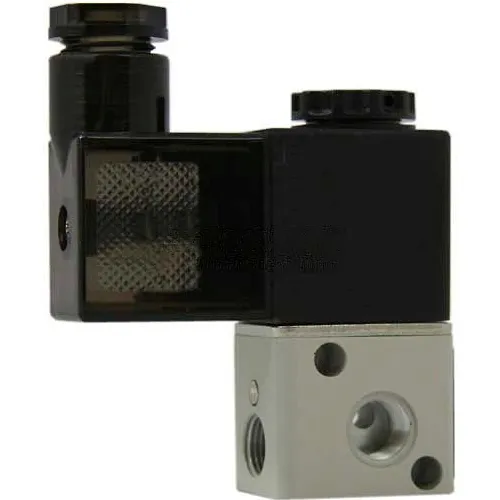

Bimba-Mead Direct Acting Valve M3V1-06-12VDC, 3 Port, 2 Pos, Single, 1/8" NPT, 12VDC, Cv=0.051

M3V1 direct acting solenoid valves are 3-way, 1/8 in NPT port, poppet style valves. They are stackable and provide a 2-position, normally closed, spring return operation. The M3V1 can be used in individual valve applications or multiple valves can be stacked together to share supply air which simplifies the piping. The DIN connector includes an LED indicator.

  • LENGTH INCHES 2-7/16
  • WIDTH INCHES 29/32
  • HEIGHT INCHES 2-63/64
  • BRAND Bimba-Mead
  • MANUFACTURERS PART NUMBER M3V1-06-12VDC
  • TYPE 3 Port - 2 Position
  • TEMPERATURE RANGE 23∼140° F
  • PRESSURE 0 to 120 PSI
  • LUBRICATION Not Required
  • ACTUATION Direct Acting
  • MEDIA Air
  • INSULATION Class F
  • FLOW Cv = .051
  • PORT SIZE 1/8" NPT
  • POWER CONSUMPTION 3.0 W
  • PROTECTION IP65 (DIN40050)
  • POWER CONNECTION DIN / LED Connector
