Nachi

Model # :WBB937184

MPN #: E5008XNNTS1

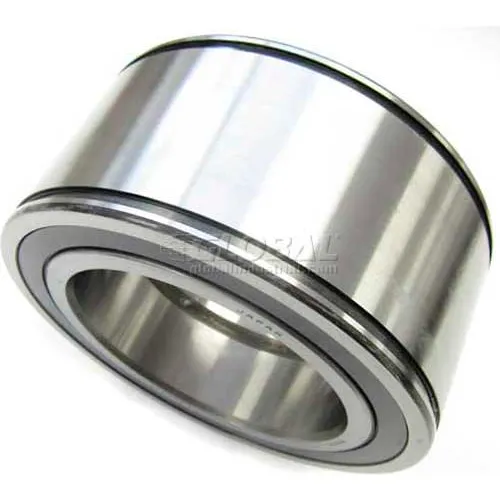

NACHI Double Sealed Sheave Bearing E5008XNNTS1, Without Snap Rings & Coating, 40MM Bore, 68MM OD

Product Description
Features

  • NACHI Sheave Bearing is a Double Row Full Compliment Cylindrical Roller Bearing
  • Since the bearing carries the highest Dynamic & Static Load Ratings, it is highly recommended for Rope Sheave applications
  • If snap rings are used on both sides of outer ring, it is easy to set the axial location of the bearing
  • Re-lubrication can be done through lubrication holes and groove on the inner ring or outer ring (for certain items)
  • Operating temperature range is -30° to 80°C (-35° to 175°F)
PRICE
$309.95

1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Bore Diameter40 mm
Inner Width38 mm
Outer Width37 mm
ToleranceISO Normal
Diameter68 mm

Product Details

Snap Groove B2.7 mm
Dynamic Load Rating (N)79,000
Cage TypeNone
Radial Clearance0.035 to 0.070 mm
Oil Hole & Groove on Outer RingInner Ring
Axial Limiting Load (N)125,000
Manufacturers Part NumberE5008XNNTS1
Grease Max Speed2,500 rpm
Snap Groove Cg32.2
Snap Groove D165.8 mm
BrandNachi
